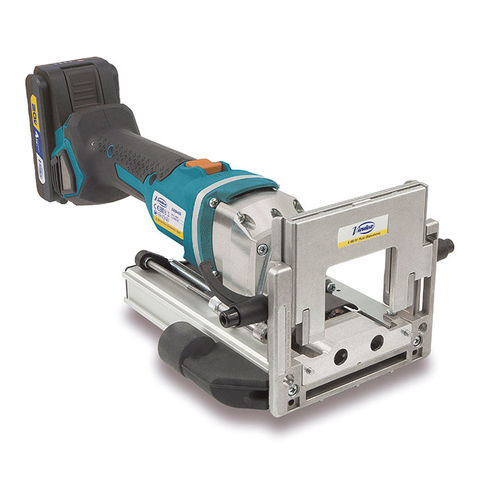

Wood drilling and insertion machine ABB400

portableelectric

Description
The ABB400 TWOO is designed for fast, accurate dowel/joint assemblies in panels. It allows drilling in any position thanks to an adjustable square with millimetric height and angle regulation. Positioning is ensured by retractable stops and 32 mm visual references (standard pitch). The tool features a routed chip outlet and a connector for external dust extraction. Includes stackable M1 case.

Compatibility & power

• Compatible with Virutex 20 V batteries equipped with a 4-LED charge level indicator
• Fast charging capability

Versions

• Ref. 7900800 Espigadora ABB400TWOO (No charger or batteries)
• Ref. 7900801 Espigadora ABB400TWOO (Includes 2 batteries and 1 charger)

Standard equipment

• Drill bits Ø 6, 8 and 10 mm
• Square for intermediate shelves
• Multi-drill accessory
• Longitudinal stop
• Stackable transport case

Optional

• Dowels for ABB4200 TWOO (bags of 100): Wood dowel serrated 6x30 · Ref. 7905043
• Wood dowel serrated 8x30 · Ref. 7905045
• Wood dowel serrated 8x40 · Ref. 7905047
• Wood dowel serrated 10x40 · Ref. 7905049
• Wood dowel serrated 12x40 · Ref. 7905051
• Drill bit Ø 5 mm · Ref. 7940100
• Extraction hose 5 m · Ref. 1746245
• Extraction hose 2.25 m · Ref. 6446073

Technical specifications

• Product reference: ABB400 · Ref. 7900800 / 7900801
• Battery: Li‑ion 20 V
• No-load speed: 15000 / min
• Drill diameters: 5 - 12 mm
• Milling/drilling depth: 0 - 38 mm
• Square inclination: 0°–90°
• Routed chip outlet and connector for external extraction
• Includes stackable M1 case
