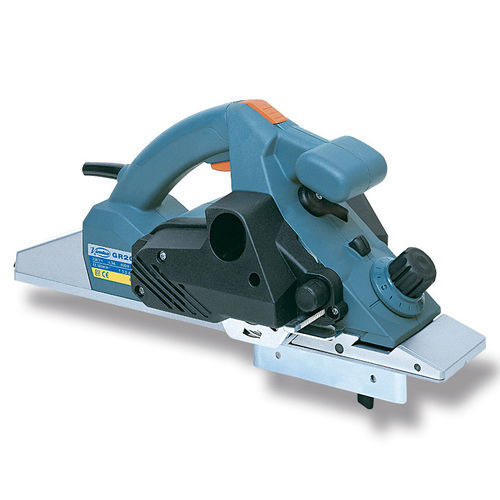

Handheld planer GR120P

for wooddouble-faceelectric

Overview
With a 442 mm long sole and balanced design, the GR120P is intended for straightening door edges and other timber parts as well as for typical professional planing tasks.
Equipped with electronic functions for improved functionality and safety: soft start, electronic speed control to maintain cutting speed under heavier load, and an electronic clutch that stops the machine if the cutter holder jams. The cutter brake stops the cutter head within seconds after switch-off.
Ergonomic design suitable for right- and left-handed users. Includes replaceable disposable and carbide blades, dust extraction port and carrying case.

Key feature
"For rebate planing, the new GR120P is, apart from the CE120P, the only planer that allows lateral planing up to 1 mm and a maximum cut height of 25 mm"

Standard equipment

• Replaceable disposable and carbide blades included.
• Dust extraction port.
• Carrying case.

Pictograms / visible features

• CE
• Double insulation
• RFI suppressor
• Cutter head brake
• Dust extraction port
• Channeled chip ejection
• Reversible and replaceable blades

Optional (accessories and available items)
2045381 — Micro-indexing square for angled rebate planing.
6446073 — Flexible extraction hose 2.25 m.
1746245 — Flexible extraction hose 5 m.
2000150 — Bench-mountable base for stationary use of the planer.

Optional blades

• 2031081 Set of 2 holders with reversible A.R. straight blades 3 mm.
• 2031080 Set of 2 reversible A.R. straight blades 3 mm.
• 2031082 Set of 2 holders with reversible A.R. rough blades 3 mm.
• 2031079 Set of 2 reversible A.R. rough blades 3 mm.
• 2040147 Set of reversible M.D. straight blades (included as standard).
• 2031078 Set of reversible A.R. straight blades.

Technical specifications

• Sole length: 442 mm.
• Double insulation.
• Power: 900 W.
• Cutting width: 82 mm.
• Cutting depth: 0–4 mm.
• Maximum rebate depth: 25 mm.
• Cutter head speed: 12,500 rpm.
• Weight: 4.6 kg.
• Electronic functions: soft start, electronic regulation to maintain speed under load, electronic clutch (stops on blockage).
• Cutter head brake (stops within seconds after switch-off).
• Suitable for right- and left-handed users.
• Includes replaceable blades and carrying case.
• Reference shown on page: 2000400 (230V).
