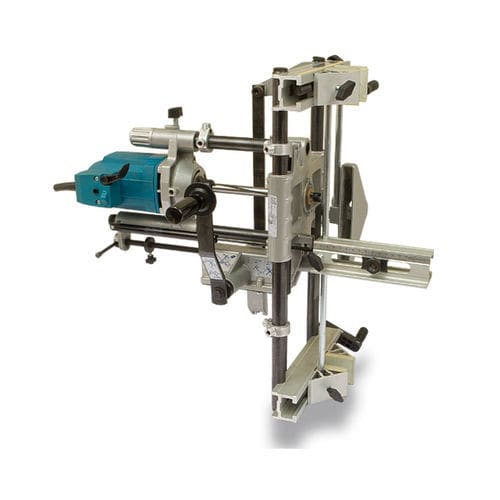

Portable electric handheld router FC116U

Features
Designed specifically to perform lock mortises in doors and other elements with speed and precision, either on site or in the workshop. Its special clamping system allows mortising on doors already hung without damaging the surface. Quick measurement adjustment enables multiple mortises in record time. Can also operate in a horizontal position. For rebated or overlapping doors it includes an adjustment system to centre the machine. Optional cutters are easily interchangeable, minimising FC116U setup for milling the lock face. Supplied as standard with the UT16I jig; enables fast and precise cross drilling for the handle spindle and other fittings. Factory-equipped with a Ø 16 mm carbide mortising cutter, stop rod for performing mortises at the same height on several doors, rubber protectors for delicate work, service wrenches and an outlet for external dust extraction.

Standard equipment

• Ø 16 mm carbide mortising cutter (1640127)
• Stop rod for performing mortises at the same height on several doors
• Rubber protectors for delicate work
• UT16I jig
• Service wrenches
• Outlet for external dust extraction

Optional

• 1645287 Extension tool UP16I
• 1640148 2‑cut carbide cutter Ø 18 mm for drilling cylinder housing
• 1640149 2‑cut carbide cutter Ø 23 mm for drilling cylinder housing

Downloads
Instruction manual, spare parts drawing and general safety rules available (PDF on the product page).

Technical data / specifications

• Ref.: 1600300 (230 V)
• Double insulation
• Power: 1,100 W
• Maximum cutter Ø: 30 mm
• Maximum milling depth: 0–125 mm
• Maximum milling length: 177 mm + cutter Ø
• Maximum jaw opening: 190 mm
• No‑load speed: 23,000/min
