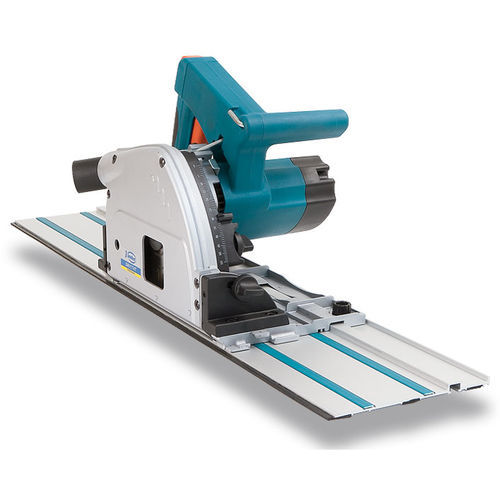

Circular saw SRI174T

for plasticswoodelectric

Presentation
Robust, ergonomic design. Optional guide rail ensures straight, parallel and stable cuts. The saw slides directly on the guide rail without intermediate accessories. Powerful motor allows cutting various materials. Electronic overload cut-off. Soft-start motor to prevent jolts at start-up. Fast blade stop. Rear soft-grip handle. Lock lever for easy blade change or riving knife adjustment. Dust extraction port for connection to an external vacuum. Carry case included.

Versions

• SRI174T (without rail) 230 V — Ref. 7400300
• SRI174T-UCP with 800 mm guide rail 230 V — Ref. 7400400
• SRI174T-UCP with 1400 mm guide rail 230 V — Ref. 7400500

Standard equipment

• UCP174T 800 mm guide rail (only SRI174T-UCP model)
• MD saw blade Ø 160 mm, 28 teeth (for wood and plastic)
• Dust extraction nozzle
• Carry case and service keys

Optional

• 7406518 UCP174T 800 mm guide rail
• 7406519 UCP174T 1400 mm guide rail
• 7445818 Jointing set for connecting two rails
• 7445819 Set of two vacuum pads for fixing the rail on smooth, non‑porous surfaces
• 6045710 Set of two clamping screws
• 6446073 Standard extraction hose 2.25 m
• Alternative saw blades (see blade reference document)

Technical specifications

• Double insulation
• Power: 1,150 W
• Blade: 160/20 mm
• Cutting depth at 90°: 55 mm
• Cutting depth at 45°: 35 mm
• No-load speed: 5,500 rpm
• Weight: 4.7 kg
• Functions: soft-start, fast blade stop, soft-grip handle, lock lever, external dust extraction port
