Pneumatically-operated clamping system SVN450

pneumaticfor workbenchesmachining

Description

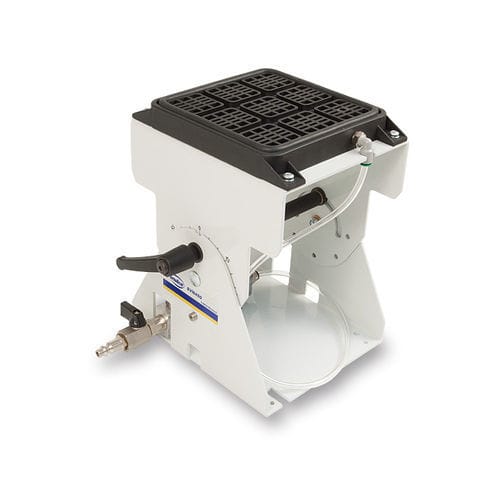

The SVN450 tilting clamping system consists of the SVN250 basic unit mounted on a tilting support. It enables machining of both an edge and a face without changing the workpiece clamping. The unit includes an air distributor with four free outlets for connecting auxiliary SVN470 or SVN250 units, equipped with a stopcock and a quick pneumatic connector. The supply also contains a bench clamp for quick fastening of the SVN450 to the workbench and a set of three rubber seals of different perimeters.

Standard equipment

• Air distributor with four free outlets
• Stopcock
• Quick pneumatic connector
• Bench clamp for fastening to workbench
• Set of three rubber seals of different perimeters (included)

Optional

• Set of 4 screws for mounting an SVN250 on the base (Ref. 0999102)
• 5004282: Replacement set for the 3 rubber seals supplied as standard
• 5004283: Tall rubber seal 10 x 6 mm

Certifications

• CE marking

Characteristics / technical specifications

• Model: SVN450
• Internal reference: 5046399
• Composition: SVN250 basic system mounted on a tilting support
• Function: enables machining of edge and face without changing the clamping
• Air distributor: 4 free outlets, allows connection of SVN470 or SVN250 units
• Included accessories: stopcock, quick connector, bench clamp, 3 rubber seals
• Options and spare parts: mounting screws (Ref. 0999102), replacement seals (5004282), tall seal 10x6 mm (5004283)
