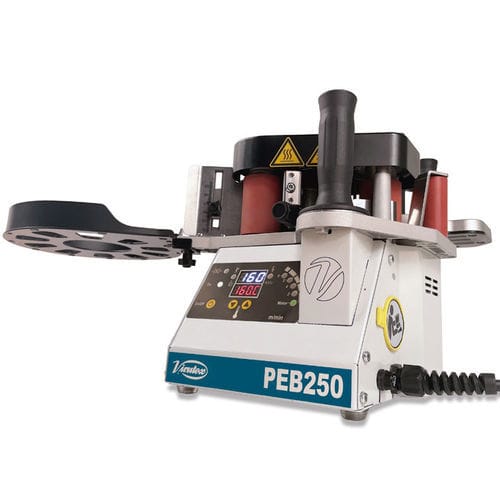

Manual edge-banding machine PEB250

for woodfor panelswith hot-melt glue applicator

Description
Portable hot-melt edge bander for applying PVC, ABS, melamine, laminate or wood edgings pre-cut to length onto straight, curved and profiled panels. Designed for small to medium production runs with simple handling and fast setup.

Key features

• Linear adhesive application
• Compact, user-friendly design
• Compatible with EVA and PUR adhesives
• Quick adhesive change; EVA adhesives can be reused
• Simple, intuitive adjustment of edging height and panel thickness
• Assisted edge feed with electronic speed regulation (settings: 2, 4, 5, 6 m/min)
• Polymerized glue roller enabling ABS 3D and crystal effects
• Electronic temperature control with precise glue dosing system
• Teflon®-treated pot and base for easy cleaning and maintenance
• Auxiliary roller for tight-radius corners and concave curves

Standard equipment

• 250 g bag of hot-melt adhesive

Technical specifications

• Reference: 5000800 (230V)
• Model: PEB250
• Power: 830 W
• Adhesive temperature (adjustable): 120–200 °C
• Feed speed (adjustable): 2, 4, 5, 6 m/min
• Panel thickness: 10–62 mm
• Edging thickness: 0.4–3 mm
• Reservoir capacity: 230 cm3
