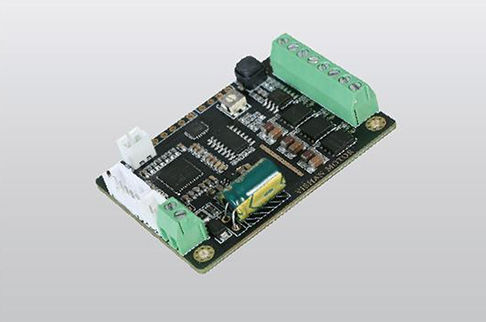

Multi-axis motion controller VMC 2403S

BLDCservomotorRS-485

Overview
Compact motion controller designed for industrial servo and BLDC motor applications. The VMC 2403S integrates motor control and RS485 communication for automation systems requiring high speed and configurable feedback.

Key features

• Operating voltage: 10-28 V DC
• Max continuous current: 3 A
• Supports position, speed and current control modes; compatible with sensor and sensorless operation
• Protection: over-voltage, over-current, over-temperature, stall/encoder-fault protection

Technical parameters
Model | Diameter(mm) | Feedback Type | Nominal Voltage(V) | Communication interface | Max Speed(RPM) | Max. Continuous Current(A) | Specification | CAD | 3D CAD
VMC 2403S | 55 | Motion/Position Control | 10-28 | RS485 | 20000 | 3A | PDF (product manual available) | DXF (2D drawing available) | STEP (3D model available)

Available documents

• VMC 2403S — Product Manual, Version 20260311, Format: PDF, Date: 2026-03-11
• VMC 2403S — 2D Drawing, Version 20260311, Format: DXF, Date: 2026-03-11
• VMC 2403S — 3D Model, Version 20260311, Format: STEP, Date: 2026-03-11

Applications

• Industrial automation, robotics and cobots
• Precision positioning systems and rotary actuators
• Conveyors, packaging machines and machine tools
