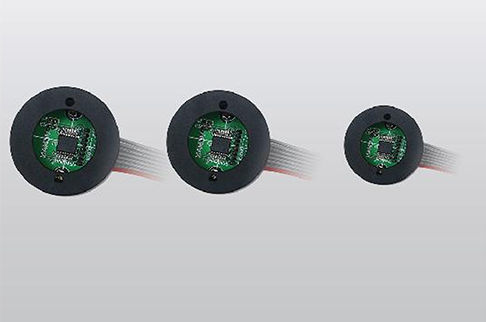

Incremental rotary encoder magneticdigital outputLine Driver
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- magnetic
- Output signal
- digital output, Line Driver
- Supply voltage
- 5VDC
- Applications
- industrial, for motors, for OEM, for robotics
- Other characteristics
- small-size, programmable, for motor feedback, 3-channel
- Incremental encoder résolution (pulses per revolution
Min.: 256 unit
Max.: 4,096 unit
- Housing diameter
22 mm
(0.87 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 20,000 rpm
(125,664 rad.min-1)
Description
Key features:Magnetic rotary encoder chip, 3 channels (ABI)Output interface: ABI (TTL)Programmable configuration: zero position and ABI lines per revolutionSelectable pulse counts (ABI): 4096, 2048, 1024, 512, 256 pprOptional four-channel differential line driver (EN22AL / EN22BL) with complementary outputsProduct parameters:Model: Magnetic encoder, 3 channels, Line Driver, 4096 CPTDiameter: 22 mmLines per revolution (LPR): 256–4096Pulse counts (ABI): 4096, 2048, 1024, 512, 256 pprMax speed: 20,000 RPMSupply voltage: 5 VOutput signal: TTL (ABI)Encoder type: MagneticSpecification: Product manual available (PDF)CAD: Not provided3D CAD: Not providedProduct manual:Title: Magnetic encoder,3 channels,Line Driver,4096 CPTFormat: PDFVersion: 20260311Date: 2026-03-11Applications:Integration in industrial rotary motion control, servomotors and feedback systemsUse in robotics, conveyors and automated assembly linesSuitable for OEM integration where a compact 22 mm diameter encoder is requiredProgrammable options facilitate calibration and integration with ABI-compatible controllers
Catalogs
No catalogs are available for this product.
