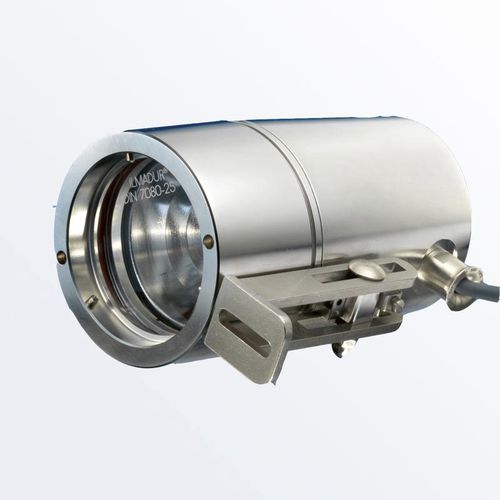

For illuminating visual flow indicators, pipelines, laboratory mixers, and bioreactors as well as the interior of tanks, hoppers, silos, agitators and other normally closed vessels in potentially explosive environments - Gas: Zones 1 and 2; Dust: Zones 21 and 22.
ex II 2G Ex de IIC T3/T4 Gb
ex II 2G Ex tb IIIC T195°C T130°C T80°C Db
Suitable for Explosion hazardous areas
Temperature Class: T4/50W; T6/20W
Ambient temperature: up to 40?C
Suits circular sight glass fittings to DIN 28120/28121 or similar
from size DN 50 and screwed sight glass fittings DIN 11851 from DN 100 Operating Voltage 12V, 24V, 120V, 230V, 240V
Power, depending on temperature class: up to 50 W
Secured by hinged bracket or adapter flange
modyfied by an inside mounting flange specially for Aseptik Technology
