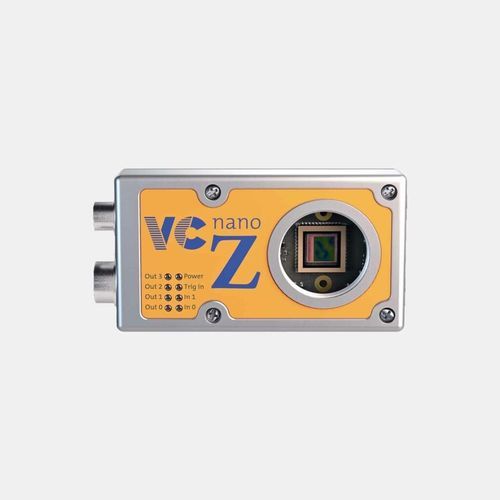

Smart camera VC nano Z

industrialfor embedded devicesdigital

The flexible and robust OEM Cams Designed for industrial applications: Our VC Nano Z Smart Cameras with powerful ARM processors and VC Linux OS. Ready to use and in a robust protective housing. The VC cameras with housing are available in three variants, with a robust standard housing, additional LED illumination and with a housing protected according to IP67 for use in harsh environments. For additional performance maximization, the integrated FPGA can be programmed. This allows up to ten times higher processing speeds to be achieved than without FPGA use. Smart cameras in the standard nano housing of the VC nano Z series: It features low weight and size and is easy and versatile to integrate. The status LEDs are freely programmable and offer additional operating convenience. Numerous variants with different image sensors are available. Pixel Size: 4.5(H) µm x 4.5(V) µm Shutter: High-Speed: 34 µs + in Stufen von 34 µs. Low-Speed: bis zu 2 s einstellbare Integrationszeit Acquisition: Programmkontrollierter oder externer High-Speed Trigger, Vollbild & partieller Scan (ROI), Aufnahme jitterfrei Processor: Dual-Core ARM Cortex-A9 mit 2 x 866 MHz und integriertem FPGA RAM: 512 MB DDR-SDRAM Flash-EPROM: 16 GB flash memory (nicht flüchtiger Speicher) Dig. I/Os: 2 Eingänge, 4 Ausgänge Trigger I/Os: 1 Trigger Eingang und 1 Blitztrigger Ausgang Interfaces: Ethernet 100 Mbit, 8 I/Os Voltage: 24 V +/-20 % DC Power consumption: 3 W Dimensions: ca. 80 mm x 45 mm x 20 mm, ca. 90 g
