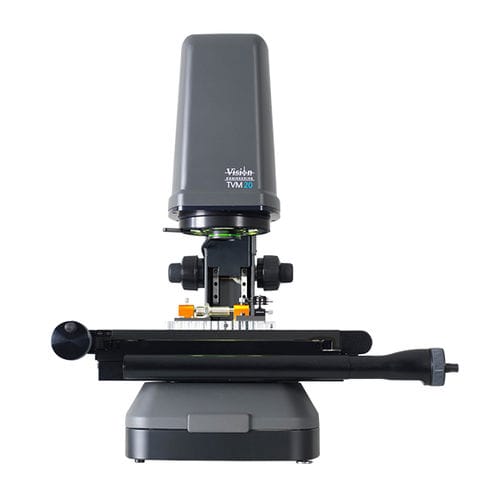

Digital microscope TVM series
inspection2-axis non-contact measuringLED illumination

digital microscope
digital microscope
digital microscope
digital microscope
digital microscope
digital microscope
digital microscope
digital microscope
Add to favorites
Compare this product


Characteristics

Type
digital
Technical applications
inspection, 2-axis non-contact measuring
Light source
LED illumination

Description

If you need to measure parts and components quickly and in large numbers – regardless of their shape – you need a TVM20 or TVM35 digital measuring microscope. All the operator has to do is place the subject on the stage for rapid measurements. TVM is ideal for taking 2D measurements of multiple subjects, when fast throughput and ease of use are essential requirements, and a great choice for a shop floor non-contact measurement system. Large field of view for fast throughput Thanks to TVM’s large 35mm field of view you can measure a wider range of samples in an instant. What’s more, a large depth of field means focus is maintained. You don’t have to waste time with fussy positioning or fixing: just place it, measure it, and move on to the next subject. Measure larger objects with a motorised stage TVM-Series can be equipped with a motorised stage that makes it easy to measure objects which don’t fit into the field of view, offering much faster measurement than old style profile projectors. Sharp, flat image for improved edge detection TVM video measuring systems use flat field telecentric optics and illumination to create a sharp image of the component on their HD monitor.  The completely flat image across the full field of view, without any curvature or distortion, enables superior video edge detection capability for the accurate measurement and inspection of components. Exceptional ease of use Everything about TVM is designed for ease of use. With minimal training and simple ‘place and measure’ functionality, measurements are instant and precise, and operator errors are eliminated.
