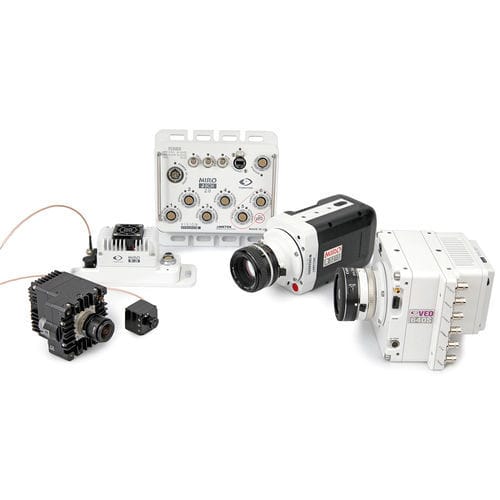

Wall-mounted junction box JBox

rugged

The new Miro Junction Box (JBox) offers true flexibility and modularity in building multi-camera configurations as simple or complex as needed. Designed to work with all Miro cameras, the JBox is a rugged and sensible connection hub that maximizes camera capability in the most difficult of situations. The JBox is Hi-G – It’s been tested to withstand shocks to 170G IAW MIL-STD 202G, and vibration of 17 grms IAW MIL-STD 202G. This makes it a perfect companion to the Miro C210J for tough applications like on-board crash testing. The JBox can be used in several ways, to match the specific application: •Custom wire the system cable directly into an umbilical cord for direct signal control •Connect the JBox to other JBoxes in a daisy chain or tree branch configuration •Connect directly to a local laptop via Ethernet using the ruggedized RJ45 Ethernet connector •Connect the system cable to a custom Control Breakout Box, to cleanly and easily connect to customer signaling and Ethernet The system cables, Ruggedized Ethernet cable, Sorenson Programmable power supply and 280W Power supply are available through the Vision Research on-line Store. Features of the Miro Junction Box 6 Camera Ports:The Miro JBox has 6 ports, each of which can connect to a Phantom Miro camera or to another Miro JBox System Port to create a daisy-chain or tree branch configuration. Each port carries Ethernet, power, serial, and Miro Camera signals, so only one cable is needed to connect to the cameras. Additionally, each port has 2 status LEDs one for Ethernet and one for camera status for easy set-up and use. The ports use rugged Fischer connectors to accept Miro System cables.
