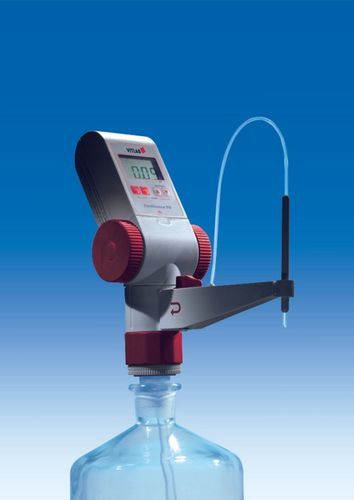

Titration burette 1620506

plasticpolypropylene

Product description
The VITLAB® continuous bottle-top burette enables continuous titration, which leads to fast, convenient and accurate results. The angled display shows 4-position titration volume in large, easily read numbers, which simplifies operation. Turning the two hand wheels supplies the titration medium in a continuous and pulse-free manner via the specially developed double-piston pump. Filling procedures are not necessary. This innovative technology increases safety; its compact design and low centre of gravity reduce risk of overturning, especially with smaller bottles. The height and length of the discharge tube can be adjusted, making it possible to work safely with both short and tall bottles. The innovative recirculation system prevents the loss of valuable reagent and reduces the risk of splashes. With its simple-to-use calibration function, VITLAB® continuous fulfils the corresponding requirements for test equipment monitoring without instrument downtime. Margins of error are under those specified in the DIN EN ISO 8655-3 standard, even for partial volumes. Also available with DAkkS calibration certificate.

Included in delivery

• VITLAB® continuous E/RS (GL 45 thread)
• 3 PP thread adapters (GL 32, GL 38 and S 40)
• Telescopic filling tube (200 - 350 mm)
• Telescopic discharge tube (140 - 220 mm)
• Two microbatteries 1.5 V (LR 03/AAA)
• Quality certificate
• Operating manual

Use and compatibility
Can be used for titrants up to a concentration of 1 mol/L.

Types / Sizes
Type | A ≤ ± % | CV ≤ % | PU | Cat. No.
E | 0,2 (25 ml) | 0,1 (25 ml) | 1 | 1620506
RS | 0,2 (50 ml) | 0,1 (50 ml) | 1 | 1620507

Characteristics / technical specifications

• Brand: VITLAB®
• Model: VITLAB® continuous E/RS
• Thread: GL 45 (product delivered with GL 32, GL 38 and S 40 adapters)
• Pump type: specially developed double-piston pump for continuous, pulse-free delivery
• Display: angled 4-position titration volume readout
• Filling: no filling procedures required
• Recirculation system: prevents reagent loss and reduces splash risk
• Calibration: built-in simple-to-use calibration function for test equipment monitoring
• Accuracy: margins of error below limits specified in DIN EN ISO 8655-3 (see Types / Sizes for A and CV values)
• Adjustability: telescopic filling tube (200–350 mm) and telescopic discharge tube (140–220 mm) for short and tall bottles
• Power supply: two 1.5 V microbatteries (LR03/AAA) included
• Accessories included: thread adapters, tubes, quality certificate, operating manual
• Available certification: DAkkS calibration certificate (option)
• Types available: E (25 ml) – Cat. No. 1620506; RS (50 ml) – Cat. No. 1620507
• Internal product code (page): 90030100001
