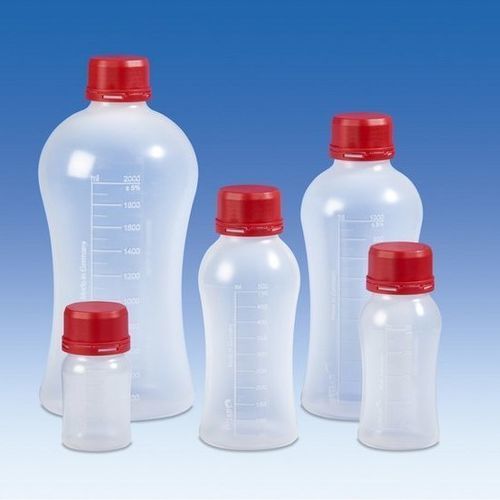

Sample bottle VITgrip™laboratoryfor liquidsstorage
Add to favorites
Compare this product
Characteristics
- Applications
- for samples, laboratory
- Product type
- for liquids
- Function
- storage
- Material
- polypropylene, PP
- Options
- cylindrical, with cap
- Capacity
Min.: 0.1 l
(0 gal)Max.: 2 l
(0.5 gal)- Height
Min.: 103 mm
(4.06 in)Max.: 278 mm
(10.94 in)- Width
Min.: 54 mm
(2.13 in)Max.: 126 mm
(4.96 in)
Description
Overview
VITgrip™ lab bottle, polypropylene (PP), GL 45 neck with tamper-evident screw cap. Round, multipurpose plastic bottle for sampling and storing liquids in the laboratory. The slim, tapered ergonomic shape and molded volume graduations provide an enhanced grip, especially when wearing gloves. The optimized thread and screw-cap sealing system ensures leakproof performance under defined test conditions, and the hydrophobic material plus round shape enable easy pouring and cleaning. Double-sided molded graduations (accuracy ±5%) allow easy reading of the contained volume during use. The supplied tamper-evident cap signals whether the bottle has been previously opened. The bottle shows very good chemical resistance to most acids, bases and alcoholic solutions. Autoclavable at 121 °C (2 bar) according to DIN EN 285. Bottle and tamper-evident cap are suitable for food contact in compliance with EU No. 10/2011.
Types / Sizes
Volume ml | Graduation ml | Height mm | Bottom Ø mm | PU | Cat. No.
2000 | 100 | 278 | 126 | 1 | 110594
1000 | 50 | 234 | 97 | 6 | 110494
500 | 25 | 192 | 77 | 6 | 110394
250 | 25 | 149 | 64 | 6 | 110294
125 | 12.5 | 103 | 54 | 6 | 110194
Notes
Height without screw cap.
* IMPORTANT NOTE: The term leakproof applies under the following test conditions: The VITgrip™ lab bottle is filled halfway with distilled water and closed with the supplied VITLAB screw closure — after the tamper-evident ring clicks into place — tightened to a torque of 5 Nm. The bottle is then turned upside down and left standing on the screw cap for 15 minutes without the filled water escaping. Test performed at room temperature (approx. 20 °C) and atmospheric pressure.
Technical characteristics / Specifications
VITgrip™ lab bottle, polypropylene (PP), GL 45 neck with tamper-evident screw cap. Round, multipurpose plastic bottle for sampling and storing liquids in the laboratory. The slim, tapered ergonomic shape and molded volume graduations provide an enhanced grip, especially when wearing gloves. The optimized thread and screw-cap sealing system ensures leakproof performance under defined test conditions, and the hydrophobic material plus round shape enable easy pouring and cleaning. Double-sided molded graduations (accuracy ±5%) allow easy reading of the contained volume during use. The supplied tamper-evident cap signals whether the bottle has been previously opened. The bottle shows very good chemical resistance to most acids, bases and alcoholic solutions. Autoclavable at 121 °C (2 bar) according to DIN EN 285. Bottle and tamper-evident cap are suitable for food contact in compliance with EU No. 10/2011.
Types / Sizes
Volume ml | Graduation ml | Height mm | Bottom Ø mm | PU | Cat. No.
2000 | 100 | 278 | 126 | 1 | 110594
1000 | 50 | 234 | 97 | 6 | 110494
500 | 25 | 192 | 77 | 6 | 110394
250 | 25 | 149 | 64 | 6 | 110294
125 | 12.5 | 103 | 54 | 6 | 110194
Notes
Height without screw cap.
* IMPORTANT NOTE: The term leakproof applies under the following test conditions: The VITgrip™ lab bottle is filled halfway with distilled water and closed with the supplied VITLAB screw closure — after the tamper-evident ring clicks into place — tightened to a torque of 5 Nm. The bottle is then turned upside down and left standing on the screw cap for 15 minutes without the filled water escaping. Test performed at room temperature (approx. 20 °C) and atmospheric pressure.
Technical characteristics / Specifications
- Material: Polypropylene (PP) for bottle and tamper-evident cap
- Neck/closure: GL 45 with tamper-evident screw cap
- Grip: Slim, tapered ergonomic shape with molded volume graduations for enhanced grip (suitable when wearing gloves)
- Graduations: Double-sided molded graduations, accuracy ±5%
- Sealing: Optimized bottle thread and screw cap system providing leakproof performance under defined test conditions
- Pouring & cleaning: Hydrophobic material and round bottle shape for optimum pouring behaviour and easy cleaning
- Chemical resistance: Very good resistance to most acids, bases and alcoholic solutions
- Autoclavable: Yes, at 121 °C (2 bar) according to DIN EN 285
- Food contact: Suitable for contact with foodstuffs (compliant with EU No. 10/2011)
- Available volumes and catalog numbers: see Types / Sizes table above
