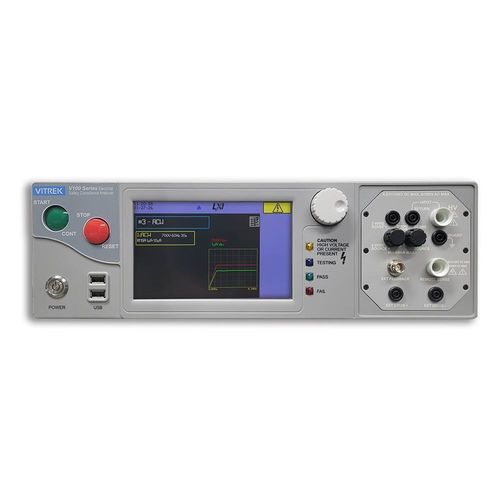

DC hipot tester V10X

AChigh-voltageelectrical conformity

Overview
The Vitrek V10X Series is an advanced electrical safety testing platform for production and laboratory environments. It provides multi-test capability including AC hipot, DC hipot, insulation resistance (IR), ground bond and 4‑wire low‑resistance measurements. The platform is automation‑ready with native SCPI support, embedded PDF reporting and scalable high‑voltage scanner channel control for large multi‑point test systems.

Key features

• AC hipot up to 10 kVrms standard; DC hipot up to 15 kV standard; optional external 30 kV AC booster
• High‑power AC output options (100 mA, 200 mA; selectable 500 VA option on supported models)
• High‑current DC sourcing up to 50 mA for rapid charging of high‑capacitance DUTs
• Integrated ground bond testing up to 40 A RMS on applicable models
• Pico‑amp leakage resolution (100 pA) enabling tera‑ohm IR readings
• DSP‑driven measurement technology with phase‑angle analysis to separate resistive and capacitive leakage
• Configurable broadband arc detection with dual thresholds (time and amplitude) and fast breakdown detection <150 μs
• Full‑color touchscreen with graphical sequence editing and real‑time measurement charts
• Configurable multi‑step sequences: 1,000+ steps supporting ramps, dwells, multi‑level IR and multi‑dwell without returning to zero
• Direct control of up to 1,600 high‑voltage scanner channels for large test matrices
• Connectivity: Ethernet (LAN), USB, RS‑232, Digital I/O, optional GPIB; embedded web interface and Wi‑Fi configuration
• Onboard PDF report generation and CSV export for audit‑ready documentation with timestamp, operator ID and full measurement traceability
• Multi‑layer safety architecture: Ground Fault Interruption (GFI), Safety Fault Interlock (SFI™) and Test Lead Safety Sense (TLSS™)
• Designed for compliance with UL, IEC, CSA, MIL‑STD and DO‑160 (400 Hz)
• Manufactured in the USA; 2‑year standard warranty

Capabilities (summary table)
AC Hipot - Voltage range per model: V101–V104: 20 V–6 kV; V105–V108: 50 V–10 kV; optional external AC‑30 provides up to 30 kV AC
AC Hipot - Max standard current: typically 50 mA standard; 100 mA or 200 mA available with options; 500 VA option provides higher power
DC Hipot/IR - Voltage range per model: V101–V102: 20 V–6 kV; V103–V106: 50 V–11 kV; V107–V108: 50 V–15 kV
DC Hipot - Max DC current: typically up to 50 mA (model/option dependent)
IR Measurement: pico‑ampere resolution supporting TΩ range
Ground Bond: integrated up to 40 A RMS on selected models
4‑wire Ohmmeter: fast 5‑digit resistance measurements down to 100 μΩ; ranges to 100 kΩ

Included/available software and documents
Onboard PDF report creation and CSV export. QT Insite PC software available (license option) for automation, test sequencing and data management.

Accessories and options (examples)

• AC‑30 external AC booster (30 kV AC option)
• 500 VA high‑power option and AC‑2 (2 kV/200 mA) option
• GPIB interface option
• Rear terminal configurations, rack mount kit, safety enclosures
• Remote start/stop foot or hand switches, HV lead sets, ground bond probes and Kelvin leads

Technical specifications

• AC test voltage: up to 10 kVrms standard; expandable to 30 kVrms with AC‑30 option
• DC test voltage: up to 15 kV standard on higher‑spec models
• AC output current: standard 50 mA; options for 100 mA, 200 mA; 500 VA capacity on supported models
• DC sourcing current: up to 50 mA (model dependent)
• Ground bond: integrated up to 40 A RMS on applicable models
• Leakage current resolution: 100 pA
• Phase‑angle measurement: in‑phase and quadrature components with ±0.05° RMS phase accuracy (typical)
• Arc detection: configurable amplitude and pulse‑width thresholds (pulse width 4–30 μs selectable)
• Breakdown detection: <150 μs fast response
• Sequence memory: 1,000+ multi‑step sequences, multi‑dwell and ramps; non‑volatile storage
• Interfaces: Ethernet LAN, USB Host, RS‑232, Digital I/O; optional GPIB; SCPI‑compliant command set
• Remote features: embedded web interface and Wi‑Fi configuration for monitoring and management
• Reporting: onboard PDF generation, CSV export, timestamp, operator ID and full measurement traceability
• Safety features: GFI, SFI™ <1 ms shutdown, TLSS™ continuous verification
• Standards: UL, IEC, CSA, MIL‑STD and DO‑160 (400 Hz)
• Resistance measurement: 4‑wire Kelvin down to 100 μΩ with automatic lead compensation
• Dimensions/weight: approx. 132 mm H × 432 mm W × 457 mm D; net weight ≈9 kg (model/options dependent)
• Operating: 0 °C to 50 °C; humidity up to 85% RH non‑condensing; altitude up to 7,000 ft
• Power: 105–265 VAC input (45–450 Hz); minimum capacity 500 VA (750 VA with high‑power option)
• Firmware: software‑upgradeable for enhancements and compliance updates
