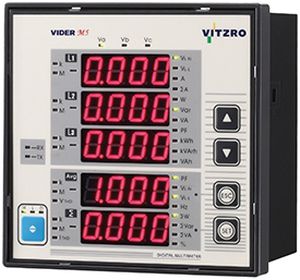

Apparent power power meter VIDER-M5

active powerreactive powerpeak power

VIDER-M5, an intelligent power meter, is designed applied with an up-to-date microprocessor and an advanced digital signal processing technology. It is a digital integrated power meter that is built in with various mechanical analogue meter functions based on the existing distribution/receiving panels and intelligent distribution panels, displaying the high frequency of current/ voltage and THD at the same time. In addition, it provides the maximum/minimum voltage/current parameters. It is mounted in front, receiving CT and PT of the distribution panel and the rectifier panel to measure and display all the electrical elements, and its case is nonflammable with 144x144 in size. It displays all the electrical parameters measured and supports RS-485, 422 communication ports for the communication with other computers and MODBUS RTU Protocol that is widely used at industrial sites. Product Features 1) Measured parameters of the power line can be monitored by five 7-Segments Display Windows, and CT ratio and PT ratio can be set using the front panel. 2) It is displayed with the phase voltage, average phase voltage, phase-phase voltage, average phase-phase voltage, active power, reactive power, apparent power, active electric energy, reactive electric energy, apparent electric energy, frequency, power factor, peak power and harmonics. 3) The load factor of the power line being used is numerically displayed to intuitively check the load status.
