Flexible video endoscope VUCAM D
for turbine engine inspectionfor camerasfor food

Flexible video endoscope - VUCAM D - VIZAAR - for turbine engine inspection / for cameras / for food
Flexible video endoscope - VUCAM D - VIZAAR - for turbine engine inspection / for cameras / for food
Flexible video endoscope - VUCAM D - VIZAAR - for turbine engine inspection / for cameras / for food - image - 2
Flexible video endoscope - VUCAM D - VIZAAR - for turbine engine inspection / for cameras / for food - image - 3
Flexible video endoscope - VUCAM D - VIZAAR - for turbine engine inspection / for cameras / for food - image - 4
Flexible video endoscope - VUCAM D - VIZAAR - for turbine engine inspection / for cameras / for food - image - 5
Flexible video endoscope - VUCAM D - VIZAAR - for turbine engine inspection / for cameras / for food - image - 6
Add to favorites
Compare this product

Characteristics

Construction
flexible
Applications
for pipes, for automobiles, for pipe inspection, for remote visual inspection, motor, for bore-hole inspection, for battery, air conditioner, HVAC, gearbox, for under-vehicle inspection, for machines, for vehicles, for gas, for boiler, for turbine engine inspection, for fireplaces, cylinder, for food, for cameras, for tanks, for sewer, for pharmaceutical products
Other characteristics
portable, waterproof, LCD display, with memory card, 4-way, articulated, small-diameter, interchangeable probe, 2-way, thin
Diameter

4 mm, 6 mm
(0.16 in, 0.24 in)

Cable length

1.1 m, 2.2 m, 3.3 m, 6.6 m
(3'07" , 7'02" , 10'09" , 21'07" )

Description

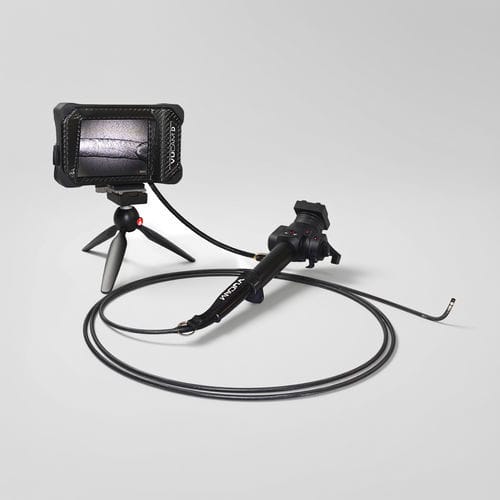

The VUCAM D is a range of videoscopes with interchangeable probes. You now have more options in your operational configuration thanks to the interchangeability of its probes. By purchasing two probes of different lengths or diameters, get two new inspection solutions directly. Save the price of a screen on your probes and also gain storage space. In addition, the ergonomics will be improved because the weight of the video endoscope will be divided by 2. 4 mm videoscope ou 6 mm videoscope Thanks to its easy fixing plate, change the probe in an instant. In addition, this plate also allows you to change the orientation of the screen. Our endoscopic probes are available in diameter 4 mm (1.2 m and 2.2 m long) and 6 mm (2.2 m, 3.3 m and 6.6 m long). You can also make a request to our design office to obtain a custom-made probe (protective coating, specific viewing angle, large length, etc.). Advanced endoscopic software Is it enough to buy a single monitor? Yes, you simply need to buy the probes with the length, diameter or optical field that fits your application and connect them to your 5.7-inch touchscreen. If your probe is damaged or contaminated for example, simply replace it at a very attractive price. In addition, it is easier to store because you only need one transport case to store two sensors and your monitor. Take advantage of our replaceable LiFePO batteries with an autonomy of about 2h30 and transportable by plane.
