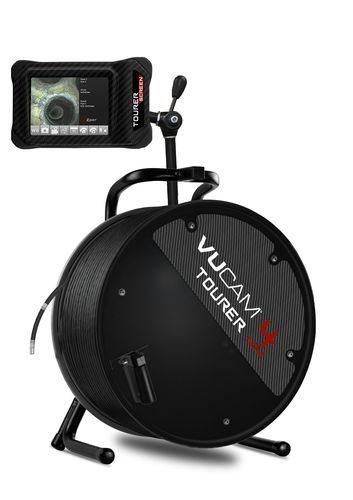

Flexible videoscope VUCAM TOURER

for turbine engine inspectionfor foodmotor

Overview
Enter professional borescope inspection with the portable VUCAM TOURER by viZaar. A versatile system designed for industrial inspections (automotive, NDT, piping, tanks, etc.). Available with 4 mm or 6 mm probes and multiple lengths. A + version is available with extended software functions.

Summary
Available model: 4 mm
Lead time: 1 to 4 weeks
Applications: transportable videoscope for industrial inspection

Key features

• Portable and versatile: metal alloy reel, battery-powered standalone operation.
• Probe sizes: Ø 4 mm (also offered in 6 mm), standard lengths 1.1 to 6.6 m (configurable up to 15 m).
• 4-layer probe sheath: 2× stainless steel, 1× heat-shrink, 1× tungsten for enhanced durability.
• Software: intuitive multilingual interface with image enhancement functions (FLIP, inversion, fullscreen modes).
• Accessories: optical adapters, probe stiffeners, centerers, tube guides, batteries and chargers, SD cards for storage.

Display and ergonomics

• Tourer Screen: 5.7" high-resolution touchscreen, tilt and anti-reflective.
• Display resolution: 640 × 400 pixels.
• Modern GUI and one-hand operation buttons for field use.

Memory and recording

• FlashbackRecording Inside: records the 15 seconds before trigger press.
• Storage on SD card; option to add additional SD card to increase capacity.

Probes and optics

• Micro camera head (CMOS) with high luminance LEDs.
• Optical adapters available to adjust DOF, DOV and FOV.

Design and durability

• Carbon housing / steel-alloy reel options depending on configuration for balance of strength and weight.
• Ergonomic handle for convenient probe deployment and storage.

Technical specifications

• Brand: viZaar
• Commercial name: VUCAM TOURER
• Probe diameters: 4 mm (also offered in 6 mm)
• Available lengths: 1.1 m to 6.6 m (configurations up to 15 m)
• Probe sheath: 4 layers (2× stainless steel, 1× heat-shrink, 1× tungsten)
• Display: 5.7" tiltable touchscreen, anti-reflective
• Display resolution: 640 × 400 pixels
• Camera sensor: CMOS
• Illumination: high-power LEDs
• Buffer/FlashbackRecording: records the 15 s prior to trigger
• Storage: SD card (images & video)
• Battery life: approx. 2 h
• Warranty: 1 year
• Image functions: FLIP (horizontal/vertical), screen inversion, fullscreen modes
• Optional accessories: optical adapters, stiffeners, centerers, tube guides, batteries/chargers, SD cards
• Delivery: worldwide
