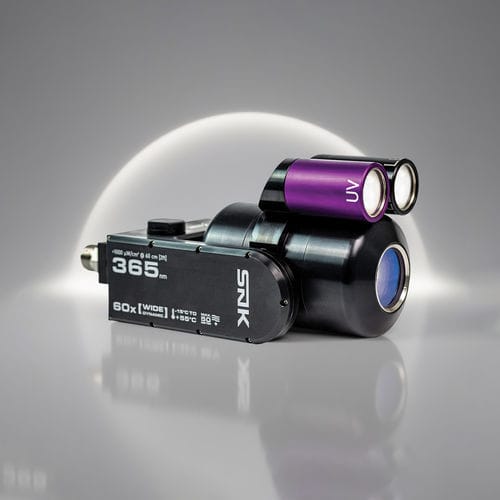

Rigid videoscope SNK Ultra 365

for foodfor pharmaceutical productsfor pipe inspection

Overview
The SNK Ultra 365 is a vessel pan-tilt-zoom (PTZ) inspection camera designed for UV-based fluorescent inspections of tanks and large containers. Built on the SNK 60× platform, it extends visual inspection capabilities for cleanliness verification and fluorescent dye penetrant crack testing in industrial environments.

Wavelength range
The system features an illumination spectrum optimized around 365 nm to highlight fluorescent contrast media and other UV-reactive indications used in cleanliness and penetrant inspections.

Scope of application
Designed for internal inspection of tanks, vessels and large piping, the SNK Ultra 365 is suitable for food, pharmaceutical and chemical industries where UV-based cleanliness tests (e.g. riboflavin) and fluorescent penetrant testing are required.

Cleanliness testing
For cleanliness checks, the interior surface is wetted with a fluorescent contrast medium (such as riboflavin). Contaminated areas retain the medium and fluoresce under UV illumination, enabling targeted cleaning until no fluorescent spots remain.

Crack testing
The SNK Ultra 365 supports fluorescent dye penetrant inspections: the fluorescent penetrant seeps into fine surface defects and emits visible fluorescence under UV light, allowing localization and assessment of surface indications and small cracks.

Operation and documentation
The camera is operated via the MATRIX documentation system. Users can switch between automatic and manual camera modes to comply with inspection protocols that require working without visible light. The system provides image optimization functions, an intuitive touchscreen interface and structured saving of inspection results.

Mobility
The system is engineered for field use: it is supplied with an optimized transport case and can be powered with optional additional batteries for mobile operation and easy deployment.

Characteristics / technical specifications

• Product type: Vessel pan-tilt-zoom (PTZ) inspection camera
• Illumination: UV LED illumination optimized for fluorescent inspection methods (365 nm) + white LED for general use
• Primary applications: Cleanliness testing, riboflavin tests, fluorescent dye penetrant crack testing
• Target industries: Food, pharmaceutical, chemical
• Operation: Compatible with MATRIX documentation system; automatic and manual camera settings
• User interface: Touchscreen, image optimization functions, documentation and structured storage of inspection results
• Portability: Optimized transport case; support for optional batteries for mobile operation
• Model: SNK Ultra 365
• Weight: 2.97 kg
• Materials: Anodized aluminium or stainless steel (depending on version)
• Dimensions: opening diameter 164 mm | standard height 280 mm
• Pan range: 347° (±173.5°) | Tilt range: -180° to +60°
• Axis speed: 0 to 14°/s
• Zoom: 60× optical | FOV range: 1.6° to 45°
• Focusing: Manual and automatic; macro function; 10 mm to ∞
• Sensor: Panasonic 1/3" CMOS (active pixels 1920 × 1080)
• Video resolution: active sensor 1920 × 1080 (approx. 700 TVL horizontal equivalent)
• Sensitivity: color 0.125 lx | B&W 0.025 lx
• Iris & shutter: 1/30 000 to 1/7 s
• Ingress protection / pressure: water resistance to 50 m; internal CO2 pressure max. 0.7 bar
• Operating temperature: -15 °C to +55 °C
• Cable lengths available: 3 m, 30 m, 50 m, 80 m; optional up to 150 m (extensions up to 200 m depending on configuration)
• Power / autonomy: optional battery operation up to 5 h
