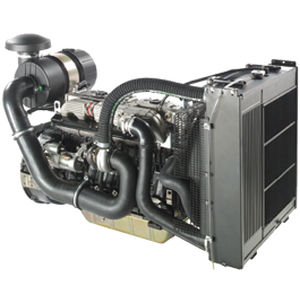

Diesel engine D756IPE2.F3S
6-cylinderturbo-intercoolerdirect injection

diesel engine
diesel engine
diesel engine
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
6-cylinder
Technology
turbo-intercooler, direct injection, mechanically carbureted
Product applications
for fire fighting pumps
Cooling system
water cooling
Other characteristics
4-stroke, compact, low-noise
Power

110 kW
(149.558 hp)

Torque

520 Nm
(383.5323 ft.lb)

Rotational speed

1,800 rpm
(11,309.73 rad.min-1)

Displacement

4.5 l
(1.189 gal)

Weight

325 kg
(716.5 lb)

Length

1,204 mm
(47.4 in)

Width

661 mm
(26 in)

Height

965 mm
(38 in)

Description

The D756IPE2.F3S is a 4-stroke diesel engine with direct injection, mechanical pump, turbocharger and intercooler to optimize performance and fuel consumption. This water-cooled engine is suitable for use in the most difficult conditions thanks to its reliability, simplicity of use and ease of maintenance. The reduced fuel consumption and noise levels which characterize this engine are appreciated by end-users, as are its compact dimensions which make the engine easy to install. The F3S version includes the starter motor, battery charger alternator, predisposition for a heat exchanger, filters and water/oil sensors. A wide range of optional accessories makes it possible to personalize the product to meet the end-user’s requirements.
