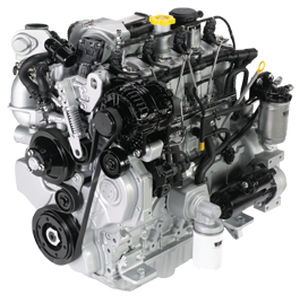

Off-road engine R 754 EU6Cdiesel4-cylinderdirect injection
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Number of cylinders
- 4-cylinder
- Technology
- direct injection, common rail
- Product applications
- for the construction industry, off-road, for vehicles
- Cooling system
- water cooling
- Emissions level
- Stage V, Euro 6
- Other characteristics
- 4-stroke, compact, low-noise
- Power
Min.: 60 kW
(81.577 hp)Max.: 84 kW
(114.208 hp)- Torque
420 Nm
(309.7761 ft.lb)- Rotational speed
1,100 rpm
(6,911.5 rad.min-1)- Displacement
3 l
(0.793 gal)- Weight
260 kg
(573.2 lb)- Length
705 mm
(27.8 in)- Width
600 mm
(23.6 in)- Height
760 mm
(29.9 in)
Description
The new common rail diesel engine VM offers everything expected from a powerful and modern industrial engine. The R754 IE5/EU6C is a 4-stroke diesel engine, direct injection, electronically regulated "common rail" fuel system, with turbocharger and aftercooler to optimize performance and fuel consumption.
The exhaust gas treatment system (DOC + DPF + SCR with EGR), allows the certification of this engine according to the EUROVI regulations for mobile road machines and also Stage V for non-road mobile machines; a double approval that gives high engine versatility.
Used in the most severe conditions, this engine combines reliability, ease of use and maintenance; reduced consumption and low noise levels; characteristics appreciated by end users who find ease in the installation of this engine thanks to its small size.
