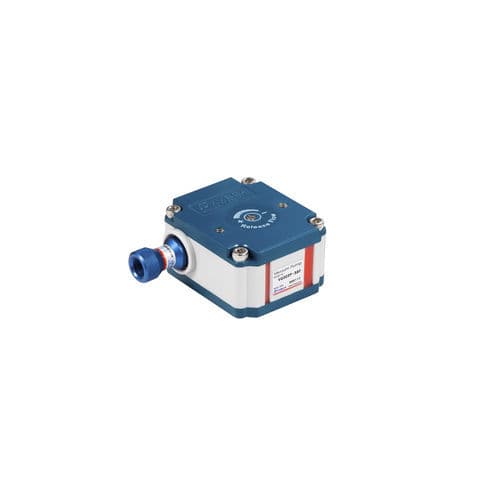

Venturi vacuum pump VQ202P
lubricatedtwo-stageadjustable

Venturi vacuum pump
Venturi vacuum pump
Venturi vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
Venturi
Lubrication
lubricated
Number of stages
two-stage
Other characteristics
adjustable
Ultimate vacuum

-90,000 Pa
(-13.05 psi)

Flow rate

40 l/min
(10.57 us gal/min)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 80 °C
(176 °F)

Weight

146 g, 160 g
(5.15 oz, 5.64 oz)

Description

The VQ series has been equipped with a unique capability called the “Blow-Off”. The way this blow off system works is that it holds compressed air inside a chamber built in the vacuum speeder. This chamber holds the air until the compressed air is cut off, allowing the air within the chamber to come out and release the product quickly. No needed Vacuum Release Line and Control Valve Build-In Vacuum Filter Easy maintenance Automatic Vacuum Filter Cleaning Function Auto Blow-Off Function Adjustable Blow-Off Air Amount Setting
