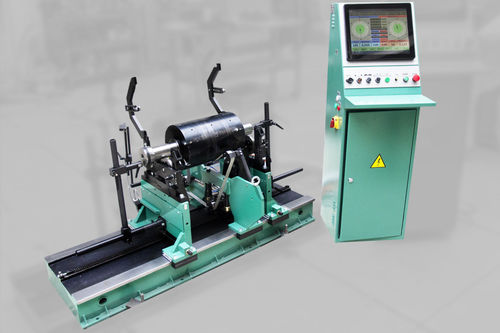

Horizontal balancing machine 9D716S1

hard bearingbelt-drivenfor electric motor rotors

MACHINE FOR BALANCING 9D716S1 The machine is designed for balancing the rotors of electric motors weighing up to 500 kg. The main feature of this model of the machine is a special lower belt drive of balanced rotors, which allows you to speed up the process of installation and removal to the machine. The measuring balancing system of the machine is built on the basis of an industrial computer with special software, in which additional functions are installed, such as: -current angle tracking system -automatic positioning of the part to be balanced to the required angle -the ability to select the optimal modes for balancing. Mass range of balanced rotors, kg 5 – 300 The greatest load on one support, kg 170 Minimum achievable residual specific imbalance, g•mm/kg 0,4 The smallest correction unit, g•mm/kg 0,2 Rotor speed range during balancing, rpm 200-1200
