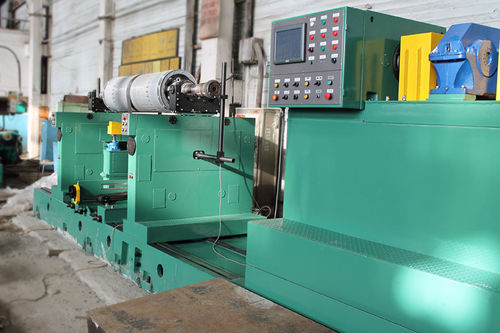

Horizontal balancing machine 9K719

soft bearingbelt-drivenfor large parts

An over-resonant type balancing machine with a pendulum suspension and cylindrical rollers for the qualitative determination and elimination of unbalance of heavy rotors of various configurations. These machines are very popular with our customers in the metallurgical industry, and the machines also serve the repair facilities of power plants, petrochemical and shipyards. The scope of these machines is far from being limited to the listed industries, since the equipment is quite versatile. Machines for balancing heavy rotors are a set of innovative technical solutions that can significantly reduce the time of repair and maintenance of the rotor, while ensuring the safety of the product and staff. Balancing machines model 9K719 effectively cope with the balancing of the rotors of large electric motors and generators. Rotors of gas compressor turbines, as well as technological equipment of power plants of all types. The design of the rollers eliminates the possibility of knurling on the rotor necks. This is important when balancing gas turbine rotors, ship shafts and propellers. Maximal weight, kg 10000 Maximal diameter, mm 2500 Rotor length, mm 5600 Accuracy, g.mm/kg 0.4
