Bag filter housing VB series

for liquidspolypropylenesanitary

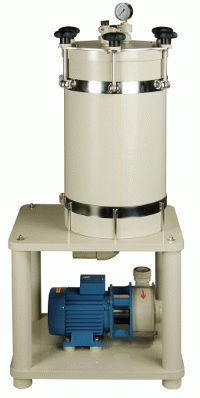

With the bag filter housings of the VB series, all parts in contact with the media are made of polypropylene. All common filter bags in the specified sizes can be used for the various series. All filter housings have a ventilation valve. As connections for the inlet and outlet, they have a + GF +screw-in part (also available with insert and union nut or additional spout). The bags are held in a sup- port basket. A pressure gauge with a separating diaphragm and a drain ball valve are usually also fitted. The bag filter housings are also available complete with a pump. In this case, they consist of a filter housing mounted on a polypropylene bracket and a centrifugal pump that is built into the console and completely piped to the filter housing. Pumps with mechanical seals made of plastic or stainless steel as well as magnetically driven pumps made of plastic are available. A motor protection switch and the associated cable with plug are normally included in the scope of delivery. The following filter bags from our delivery program are available for use in the bag filter housings of the VB series. ➢ Filter bags (Information on this can be found in product sheet 3.000)
