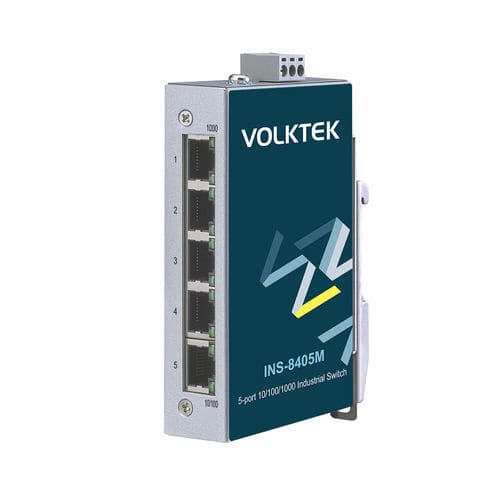

DNV ethernet switch INS-8405M

unmanaged5 portsProfiNet

Product Highlights:




5 x 10/100/1000 RJ45 ports downlink for multiple Ethernet speed applications Optimizes network performance with Flow Control and QoS for enough bandwidth
It prioritizes transmission for industrial applications using PROFINET packets and 802.1p/Tag QoS
DNV Marine Approval, communication standard for safe and reliable marine operations
Operating temperatures -40C~75C (-40F~167F) and IP30 aluminum housing * The highest degree of temperature operation certified by DNV is (Class D) -25C~70C (-13F~158F)
* The nominal voltage of 24VDC for DNV type approval is specified.




Overview:
INS-8405M is a 5-port, 10/100/1000 RJ45 downlink unmanaged industrial switch for very elementary communication between controllers and devices in automation settings. It offers auto-negotiation on all its ports to aggregate devices easily in industrial ethernet applications. The switch offers various in-built traffic optimization and network performance features to prioritize PROFINET industrial protocol communication, and QoS Tagged data 802.1p/Tag QoS prevent the loss of data during communication, and stable transmission.




This switch is built with industrial-grade components, enclosed in IP30 aluminum, to protect the device from tools and hazards. This device is certified DNV approved for safe use in marine applications. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40C~75C (-40F~167F) it suits extreme industrial environments.
