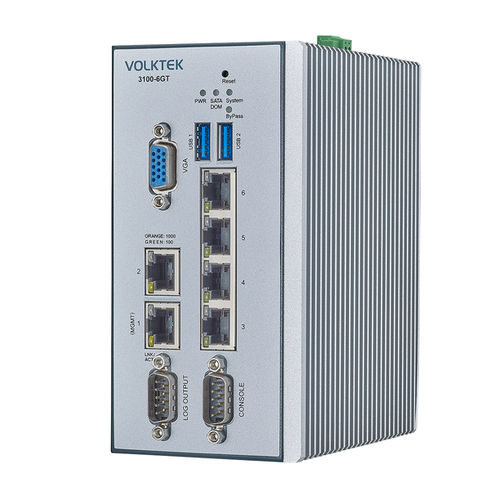

Industrial firewall 3100-6GT-I

DIN rail

Overview
The 3100-6GT-I is Volktek's industrial control firewall engineered for industrial control systems (ICS) and SCADA environments. It is intended for automated factories, manufacturing sites, oil & gas, energy and utility facilities (telecom, water treatment), and power plants to isolate and protect different network zones. Designed for extreme temperature, humidity, dust and vibration conditions, the unit includes a hardware LAN bypass to maintain network traffic when power or system faults occur, enabling extension of IT security into OT networks. The 3100-6GT-I provides deep packet inspection and protocol filtering for common industrial protocols such as Modbus, DNP3, IEC-61850 and Citrix to strengthen SCADA security.

Product Highlights

• 6 x 10/100/1000 RJ45 ports
• 2 x RS-232 COM ports
• 1 x VGA port
• 2 x USB 3.0 ports
• 1 set (LAN 1 & 2) bypass port (pair)
• Operating temperature: -40°C to 75°C (-40°F to 167°F)

Features

• Physical and virtual isolation of automation networks
• Monitoring and detection of malware and vulnerabilities
• Infection containment and network isolation
• Deep inspection and filtering of industrial protocols
• OPC intrusion prevention
• Authentication and access management
• Application allowlisting
• VPN support
• Web dashboard and monitoring
• Disaster recovery
• USB device support
• Central management (CMS and Cloud)

Ordering Information
Model: 3100-6GT-I — Description: Managed 6 x 10/100/1000 RJ45 with LAN Bypass Industrial Firewall

Specifications

• Firewall throughput: 1.8 Gbps
• VPN throughput: 200 Mbps (IPsec AES)
• OPC throughput: 480 Mbps
• Anti-virus throughput: 350 Mbps
• Max. sessions: 200,000
• Interfaces: 10/100/1000Base-T — 6 ports
• Serial console (RS-232): 2 ports
• USB ports: 2
• Bypass port (pair): 1 set (LAN 1 & 2)
• LED indicators: PWR, SATA DOM, System, ByPass, LINK/ACT, 1000, 100
• SATA DOM: 64G SATA DOM (SLC)
• Network interface: Speed: Gigabit. Fixed port: 1. Custom ports: 5.
• Power: DC 9 ~ 36 VDC
• Housing: Metal (IP30)
• Operating temperature: -40°C ~ 75°C (-40°F ~ 167°F)
• Storage temperature: -40°C ~ 85°C (-40°F ~ 185°F)
• Operating humidity: 10% ~ 80% (non-condensing)
• Storage humidity: 10% ~ 80% (non-condensing)
• Weight: 1,310 g (2.89 lb)
• Mounting options: DIN-rail / Wall mount
• Dimensions (W x H x D): 74.5 x 146 x 126 mm (2.93 x 5.75 x 4.96 in)
