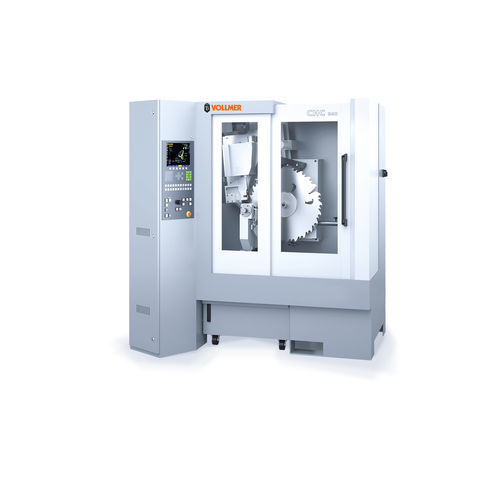

Vertical disc sharpening machine CHC 1300
circular saw bladeautomaticCNC

vertical disc sharpening machine
vertical disc sharpening machine
vertical disc sharpening machine
vertical disc sharpening machine
vertical disc sharpening machine
vertical disc sharpening machine
Add to favorites
Compare this product


Characteristics

Type
vertical disc
Applications
circular saw blade
Control type
automatic, CNC
Other characteristics
high-precision, high-performance, high-productivity, 4-axis
Power

2.2 kVA
(2.99 hp)

Description

HE MACHINE CONCEPT The CHC series is ideally equipped for sharpening carbide-tipped circular saw blades. Offering versatility that leaves nothing to be desired, yet with numerous options. Four CNC-controlled axes for the complete machining of all commonly used tooth geometries in just one cycle – even for saws with axial angle and group toothing Oscillation grinding as standard – for high material removal rates in just one cycle, e.g. when machining teeth for repair Motor-driven hook and clearance angle adjustment for rapid switchover from tooth face to tooth top Optimum movement coordination for short grinding times and reduced non-productive times Consistently hydraulic-free – extremely low-maintenance Automatic central lubrication included in the basic equipment for reduced maintenance costs THE APPLICATION Its high level of variability and functionality makes the CHC series the first choice in each case for the workshop-orientated sharpening of circular saw blades in the processing of aluminium, plastic and, in particular, wood. Can be flexibly used by sharpening services, small batch manufacturers and, of course, saw mills. Thanks to the diagonally installed feed pawl with pneumatic lift, even chipper segments present no problem – even if these are screwed with or without a reinforcing ring onto the sharpening devices manufactured specially for this purpose, often also with filler pieces in order to fill the gaps in the body. Wide-opening blade clamping mechanism as standard for saws with collar or reinforcing ring Optional second feed pawl for machining tooth pitches up to 180 mm Optional hollow face grinding device for machining hollow face saws
