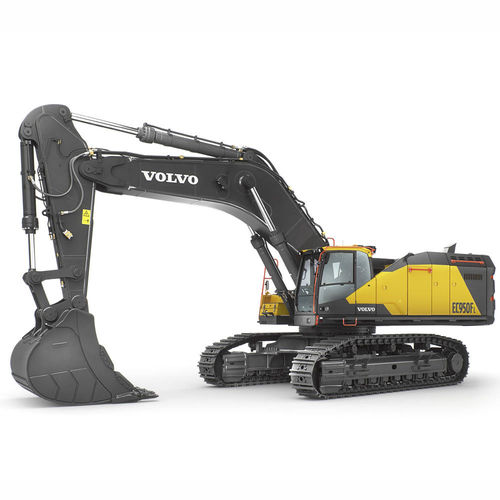

Large excavator EC950F

large excavator
large excavator
large excavator
large excavator
large excavator
large excavator
large excavator
Add to favorites
Compare this product


Engine type
Bucket capacity

Max.: 7 m³
(247.2 ft³)

Min.: 3.9 m³
(137.7 ft³)

Lifting capacity

34,900 kg
(76,941.3 lb)

Operating weight

Max.: 94,810 kg
(209,020.3 lb)

Min.: 91,275 kg
(201,226.9 lb)

Engine power

449 kW
(610.47 hp)

Travel speed

2.8 km/h, 4.4 km/h
(1.7 mph, 2.7 mph)

Tank capacity

Max.: 890 l
(235.1 gal)

Min.: 0 l
(0 gal)

Sound level

109 dB

Digging depth

7,120 mm
(280.315 in)


Perform a variety of tasks with greater speed in the heavy-duty EC950F from Volvo, utilizing advanced technology to increase productivity and efficiency. Whether you’re working on a quarry, in mass excavation or any other application, the big and powerful EC950F excavator will maximize your profitability. SOLID STABILITY The outstanding stability of the EC950F means operators can work with confidence in the most challenging environments. The well-balanced and solid machine features a wide track gauge, long track length, retractable undercarriage and an optimized counterweight. POWERED BY VOLVO Rely on a superior performance from the EC950F, featuring a powerful 450kW Volvo D16 engine, which delivers high torque at low rpm. The machine utilizes advanced technology built on decades of experience to ensure a highly productive operation. COMFORTABLY PRODUCTIVE For operator convenience, all machine interfaces – including the joysticks, keypad and LCD monitor – are ergonomically positioned and designed for optimum control. The low-noise and spacious cab further enhances operator comfort and performance. BUCKETS TO MATCH Maximize productivity with Volvo buckets, perfectly matched to your machine for ultimate digging results in all working conditions. Our range includes General Purpose, Heavy-Duty and Extreme-Duty buckets, and when your application requires something more unique, we offer Custom-Built Attachments to develop the right solution for you. FAST CYCLE TIMES Cut cycle times to a minimum with the fully electro-hydraulic system. The optimized hydraulics system increases pump power for a fast and smooth operation.
