Wine tank

stainless steelopencylindrical

Product description

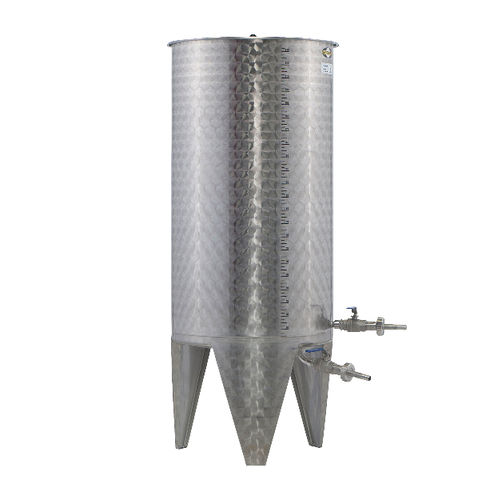

Stainless steel wine tank with a capacity of 220 L and a diameter of 550 mm. Surface finish: 3D, external marmorated. Open-top design with reinforced edge; delivered with lid. External liter scale for level reading.

Processable materials

• Apples
• Pears
• Quince
• Blueberries
• Manioc
• Vegetables

Technical data
Connection for juice outlet: Internal thread R3/4
Material: 1.4301 / AISI 304
Weight: 18.2 kg
Height: 1400 mm
Width: 550 mm
Length: 550 mm

Options, accessories and spare parts
190006089 — suspension elbow for hose DN25 - 3/4 in
190006069 — suspension elbow for hose DN25
10032267 — suspension elbow for hose DN20
10022459 — level indicator for 220 L tank, for retrofitting

Characteristics / technical specifications

• Capacity: 220 L
• Diameter: 550 mm
• Surface finish: 3D, external marmorated
• Top: open (delivered with lid)
• Reinforced edge
• Liter scale located on the outside
• Material: Stainless steel 1.4301 / AISI 304
• Weight: 18.2 kg
• Height: 1400 mm
• Width: 550 mm
• Length: 550 mm
• Connection for juice outlet: Internal thread R3/4
