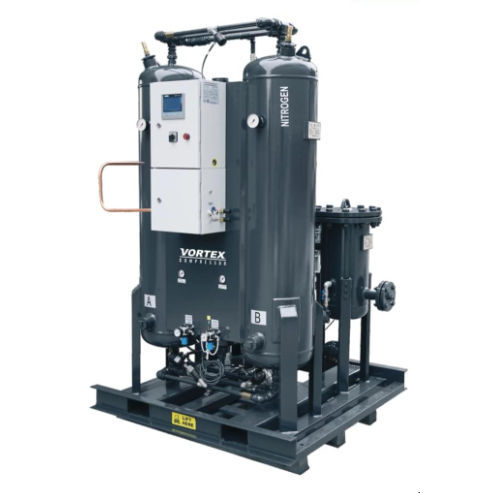

Process nitrogen generator VNG series

CMSPSAcompact

Pressure Swing Adsorption (PSA)type Nitrogen Génération System that is used to separate and enrich Nitrogen from Oxygen employs CMS (Carbon Molecular Sieve) for absorbent Carbon Molecular Sieve (CMS) adsorbs Oxygen and Water Vapor molécules under certain pressure while allowing Nitrogen to pass through. The Nitrogen Generator is a Two-Bed Adsorber System The Nitrogen Generator consists of two adsorber vessels filled with CMS. a valve assembly. air filters. main pressure regulator. and a product receiver tank Clean and dry air is directed to one of the adsorber beds where oxygen and water vapor is adsorbed faster than nitrogen in the pore structure of the CMS, thus increasing the nitrogen purity of the product gas stream to the desired level (95-99.999% as required by customer). This product flows out from the top of the adsorber bed, through the valve and into the product receiver at a pressure slightly below the feed air pressure. Applications Métal industry Chemical industry Plastic industry Automotive Industry Production process and storage of food Standard Oxygen Analyzer / Nitrogen Purity Sensor Flow Meter Carbolescer with oil indicator Nitrogen Generator/ Silencer Basic Logo or Crouzet mini pic for modular type Siemens HMI color touch screen for twin towers Buffer Tank (Standard for MNG 10 to MNG 2050) T Filters are standard in ail models Features - Simple structure, compact design, full automated opération - Replaces manifold usage - Touch Screen HMI for controlling the complété System - HMI Screen for monitoring and visualizing the progress - Rapid start-up and safety system
