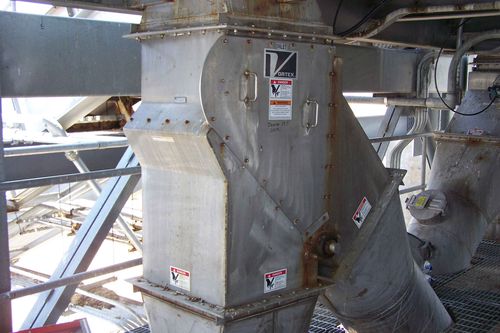

Powder diverter valve ZXX

gravity

The Vortex® Seal Tite Diverter™ offers many unique features and significant advantages over alternative flap diverters. Ideal application: Gravity flow applications where dry bulk solid materials must be diverted from one source toward up to three destinations. Key Features Recessed blade(s) to protect the blade(s) & seal(s) from abrasion Removable access panel for in-line inspection and maintenance Live loaded, wear compensating shaft seal(s) protect the blade shaft(s) from wear and prevent material leakage into the opposite chute(s) Lightweight construction for easy installation Constructed from specialized metals and polymers for application-specific durability Unobstructed chutes for unrestricted material movement No pinch points or exposed moving point for safety No internal cavities to prevent wedging, lodging & spoilage Flange and outlet chute angle options to match up with pre-existing footprints Standard Sizes 4 – 30 in | 100 – 760 mm Contact us for custom sizes Inlet & Outlets Available in square or rectangular sizes. Round transition options are available Overall Height 15 x 15 in – 65 x 55 in 385 x 385 mm – 1,640 x 1,370 mm Weight 40 – 1,265 lb | 20 – 575 kg Outlet Chute Angle Options 30° or 45° from center Contact us for custom angles Flange Options Standard flange, ANSI #125/150, DIN PN10 Custom flanges are available Material Temperatures 180° F | 80° C for standard gate, with modifications that allow up to 400° F | 205° C Body/Frame Options 304 or 316L stainless steel, carbon steel Material Contact Options 304 or 316L stainless steel, carbon steel Blade Seal Options Buna-N nitrile rubber, silicone rubber, polyurethane, EPDM rubber
