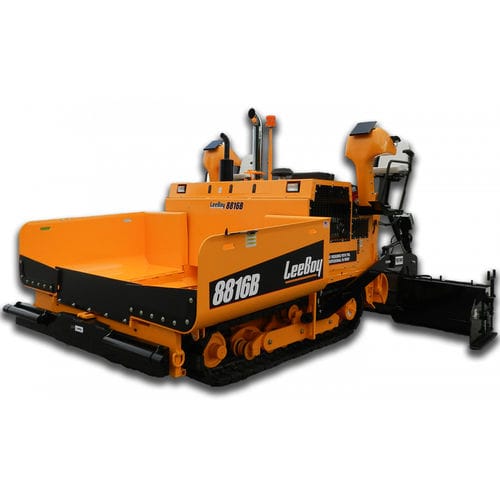

Asphalt paver 8816B

tracked

Dimensions:Length: 17’ 5” (5.310 m)Width: 8’ 6” (2.591 m) transport10’ (3.048 m) hopper wings downHeight: 9’ (2.743 m)Total Weight (with screed): 25,000 lbs. (11,339 kg)Hopper:Dual 18” (0.457 m) heavy-duty slat feeding conveyorsEach conveyor is independent with automatic cut-offs and conveyor bypassConveyors and auger are reversibleProportional speed controlled augers and conveyorsHopper size: 10 ton (9,071 kg)Hopper height: 24” (0.610 m)Engine:Cummins diesel engineTier 3 - 130 hp (97 kW) @ 2,200 rpmCapacities:Fuel: 30 gallons (114 l)Hydraulic: 50 gallons (227 l)Washdown tank: 9.76 gallons (37 l)Paving Widths:Variable Up To 15’ 6” (4.7 m)
