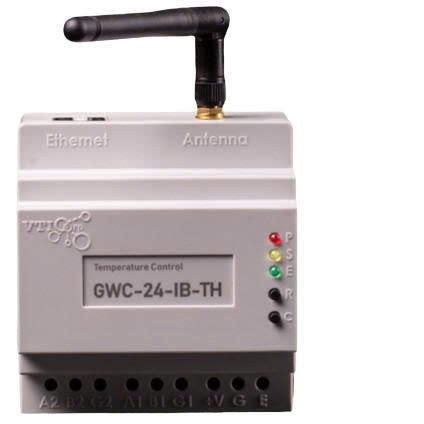

Communication gateway GW22

industrialwirelessWiFi

The device collects temperature data from a wireless sensor, using 2.4GHz wireless technology. Integrates with the center or HMI according to its own standard or Modbus TCP/Modbus RTU standard, increasing flexibility in industrial applications. Connects to Ethernet/4G/Wifi hub. Easily connect and configure with the device’s built-in web interface. Manufacturer: VTICorp – Viet Nam DATA SHEET Detail: Description Communication with sensors: Wireless Data transmission protocol (Optional RS485, Ethernet, WiFi, 4G): Modbus RTU, Modbus TCP/IP, RAW data Interface: Ethernet/RS485/Wifi/4G Configuration interface: Web Number of connected sensors: 3/6/12/24/32/64/128 Power Supply: 12VDC, 1A Dimension: L x W x H: 93 x 84 x 24 (mm) Weight: 200 gram Features: - Collects temperature data from wireless sensors (2.4GHz) - Supports Modbus TCP/RTU and proprietary protocols - Ethernet/4G/Wifi connectivity - Web-based configuration - Supports up to 128 sensors - Power: 12VDC, 1A - Dimensions: 93 x 84 x 24 mm - Weight: 200g Technical Specifications: - Communication: Wireless (2.4GHz) - Protocols: Modbus RTU, Modbus TCP/IP, RAW data - Interfaces: Ethernet, RS485, Wifi, 4G - Configuration: Web interface - Sensor capacity: 3/6/12/24/32/64/128 - Power supply: 12VDC, 1A - Dimensions: 93 x 84 x 24 mm - Weight: 200g
