Piloting product demonstration platform CONVY01

for test

Product

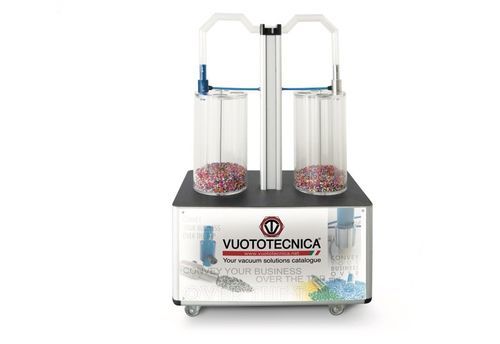

Demonstration unit CONVY01 for handling and transfer of powders and granulated products, equipped with CX flow generators.

Description
The CX flow generators use a specific geometry and a straight‑flow operating principle that enable suction and transfer of materials with minimal interference. The unit is intended for live demonstrations at trade shows, showrooms and test rooms and supports handling of powders, granules, sawdust, grains, metal shavings and liquid or dry food products. The system requires connection to compressed air and to the electrical mains.

Applications

• Trade shows, showrooms and test rooms
• Live demonstrations of material handling and transfer
• Handling of powders, granules and sawdust
• Handling of grains, metal shavings and food products (liquid or dry)

Technical features

• Electrical power: Single‑phase V230 ± 10% 50/60 Hz
• Electric power: 0.5 kW
• Compressed air consumption: 390 L/min @ 2 bar
• CONVY01 weight: 90 kg
• Flight case 01 weight: 200 kg
• Total weight: 290 kg

Installation requirements
Requires connection to compressed air supply and to single‑phase electrical mains. Observe local safety and electrical installation regulations.
