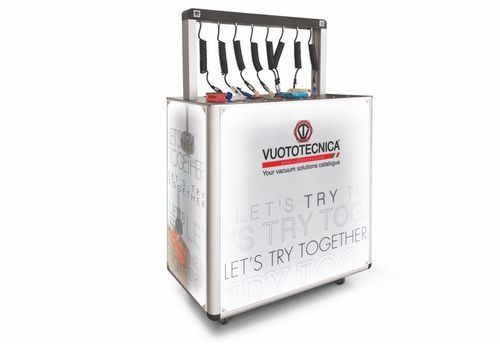

Pressure test bench BT01air flowautomaticfor suction units
Add to favorites
Compare this product
Characteristics
- Test type
- pressure, air flow
- Operating mode
- automatic
- Test material
- vacuum, for suction units
- Sector
- for laboratory, for research and development
- Technology
- pneumatic, suction type
- Configuration
- benchtop
- Other characteristics
- vacuum
Description
Product description
The device is a test bench for selecting vacuum suction cups. Equipped with 6 vacuum and 2 pneumatic sockets, it allows testing vacuum and Bernoulli suction cups on parts to be gripped or moved to determine the appropriate cup type. The unit includes an integrated vacuum generator and requires only connection to compressed air and mains power.
Applications
Technical features
The device is a test bench for selecting vacuum suction cups. Equipped with 6 vacuum and 2 pneumatic sockets, it allows testing vacuum and Bernoulli suction cups on parts to be gripped or moved to determine the appropriate cup type. The unit includes an integrated vacuum generator and requires only connection to compressed air and mains power.
Applications
- Suction cup selection and gripping tests
- Demonstrations at trade shows and showrooms
- Technical training in vacuum handling technology
Technical features
- 6 vacuum and 2 pneumatic sockets
- Electrical power: Single-phase V230 ± 10% 50/60 Hz
- Electric power: 1.5 kW
- Compressed air consumption: 390 L/min at 2 bar
- Device weight (BT01): 115 kg
- Flight case 01 weight: 200 kg
- Total weight: 315 kg
- Integrated vacuum generator; connection to compressed air and electrical power required
