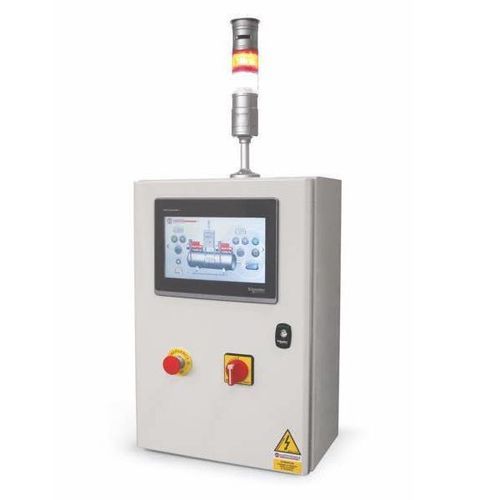

Pump control panel DO10098VPLC

for 2 pumpsfor emergency pumpspower

Product description
The electrical control panel integrates a touch-screen operator panel (screen + digitizer) providing a human‑machine interface (HMI) and an embedded PLC that manages all control logics for manual and automatic operation. The panel collects digital signals from a vacuum switch to command vacuum pumps as required. The unit is designed for single‑phase 230 Vac 50 Hz and three‑phase 400 Vac 50 Hz supplies and is rated IP54.

Applications / Key functions

• HMI via touch‑screen operator panel for intuitive operator control and status display.
• Embedded PLC for execution of control logics in manual and automatic modes.
• Acquires digital signals from vacuum switch (vacuostat) to command vacuum pumps.
• Suited for pump sets and safety pump sets with two or more pumps (centralized control).
• Designed for installations with single‑phase 230 Vac 50 Hz or three‑phase 400 Vac 50 Hz; protection rating IP54.

Technical specifications

• Touch‑screen operator panel (screen + digitizer) enabling direct graphical interaction.
• Human‑Machine Interface (HMI) functionality for operator control and monitoring.
• Integrated PLC managing control logics for manual and automatic operation.
• Power supply: single‑phase 230 Vac 50 Hz and three‑phase 400 Vac 50 Hz.
• Protection rating: IP54.
• Function: collects digital signals from vacuum switch to power vacuum pumps when necessary.
• Intended use: pump sets and safety pump sets with two or more pumps.
• Product codes: DO10098VPLC, DO10097VPLC, DSO30097VPLC.
