3-axis CNC machining center VL-127
verticalBBT40rigid

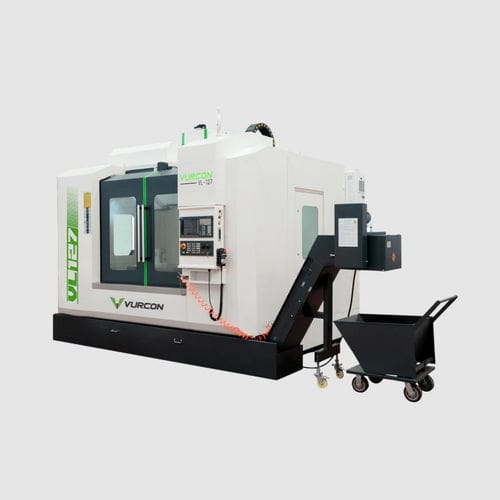

3-axis CNC machining center - VL-127 - VURCON CNC - vertical / BBT40 / rigid

3-axis CNC machining center - VL-127 - VURCON CNC - vertical / BBT40 / rigid - image - 2

3-axis CNC machining center - VL-127 - VURCON CNC - vertical / BBT40 / rigid - image - 3

3-axis CNC machining center - VL-127 - VURCON CNC - vertical / BBT40 / rigid - image - 4

3-axis CNC machining center - VL-127 - VURCON CNC - vertical / BBT40 / rigid - image - 5

3-axis CNC machining center - VL-127 - VURCON CNC - vertical / BBT40 / rigid - image - 6

3-axis CNC machining center - VL-127 - VURCON CNC - vertical / BBT40 / rigid - image - 7

Add to favorites

Compare this product

Characteristics

Number of axes

3-axis

Spindle orientation

vertical

Spindle mount

BBT40

Other characteristics

rigid

X travel

1,200 mm
(47.24 in)

Y travel

700 mm
(27.56 in)

Z travel

700 mm
(27.56 in)

Rotational speed

Max.: 10,000 rpm
(62,832 rad.min-1)

Min.: 20 rpm
(126 rad.min-1)

Power

15 kW
(20.39 hp)

Work feed X-axis

36 m/min

Work feed Y-axis

36 m/min

Work feed Z-axis

32 m/min

Table load capacity

1,300 kg
(2,866 lb)

Tool weight (max)

8 kg
(17.6 lb)

Positioning accuracy

0.012 mm
(0.00047 in)

Repeatability

0.005 mm
(0.0002 in)

Weight

10,500 kg
(23,148.54 lb)

Overall length

3,800 mm
(149.6 in)

Overall width

2,960 mm
(116.5 in)

Overall height

3,000 mm
(118.1 in)

Description

15” TFT color touch screen Manual Guide i Rigid Tapping Communication Interface: Ethernet, USB, CompactFlash, RS232 3kW Axis Servomotors. 10,000 RPM Head cooled by oil cooler Oil/coolant separator Chain-type chip extractor, with two side screws + trolley Linear guides with roller carriages on all three axes Telescopic protections on all three axes Automatic lubrication Air conditioning in the electrical cabinet Circular cooling system in the main spindle plus coolant nozzles Chip sweeping by coolant jet Coolant through the tool with high-pressure pump of 20 Bar + Subtank with filters Work light and machine status light Automatic disconnection (M30 Off) Full enclosure Sectors in which it is used: ARMAMENT EDUCATION / TRAINING TOOL MANUFACTURER INDUSTRIAL MAINTENANCE GENERAL MACHINING MOLD / DIE / OTHERS ENGINEERING AND MANUFACTURING SERVICE
