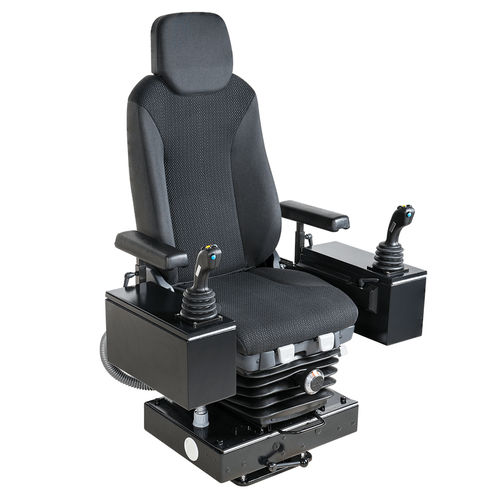

Swivel operator seat KST4

for cranes

The KST4 is an ergonomically designed swiveling crane control chair which provides a high degree of comfort. Equipment boxes: The sheet steel equipment boxes are vertically and horizontally adjustable. The arrangement of the joysticks, indicators and control devices is customised according to customer specifications. Cabling is carried out through a cross-member in the traverse. (Terminal block) Special boxes available upon request. Driver’s seat: As standard the KST4 is fitted with a KFS11 seat. The seat itself is fitted with a hydraulic vibration absorption system complete with weight adjustment to ensure that the comfort level is fitted with armrests and a headrest. There is the option to have the seat covered with air-permeable artificial leather. Cross-member with swivel base: The cover of the sheet steel cross-member including the driver’s seat is forward foldable. Thereby all wirings, terminals and bushings are easily accessible during commissioning and maintenance. Swivel base has zero-clearance bearing and can be locked by a friction brake. Surface treatment Base coat and textured varnish Standard colour RAL 9011 black
