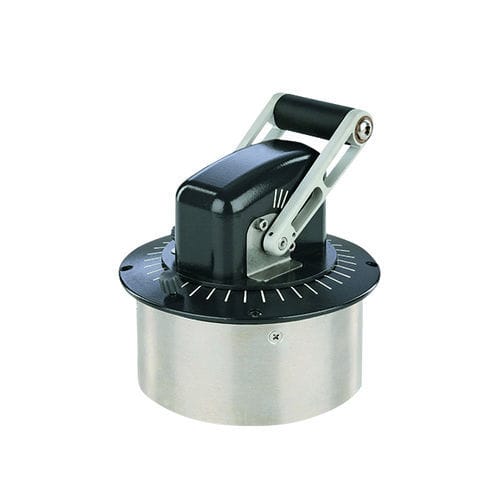

Handle control lever AZ1

for marine applications

The Naval Cruise Controller AZ1 is a rugged switching device. The modular design enables the switching device to be used universally. The design includes: The mechanical control-system for the engine speed 0-max. rpm. switching angle 60 degrees with pressure print at 7 degrees and friction brake direction 0-2. The mechanical control-system for the steering left/right direction 13-14, 360 degrees with pressure points 4×90 degrees and friction brake. The AZ1 is resistant to oil, maritime climate, ozone and UV radiation. Technical details may vary based on configuration or application! Technical data subject to change without notice! Technical data • Mechanicla life AZ 1 : 12 million operating cycles • Operation temperature : -40°C to +60°C • Storage temperature : -50°C to +80°C • Degree of protection : IP66
