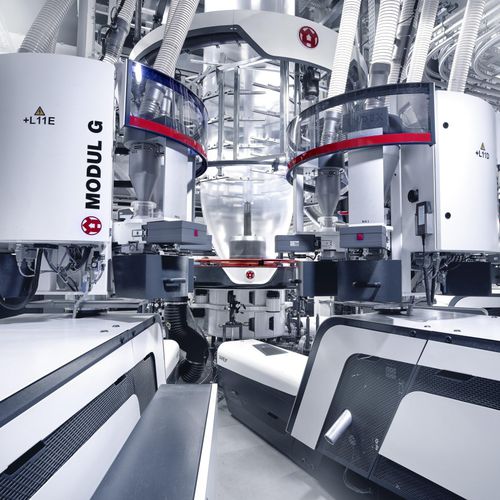

11-layer extrusion line VAREX IIblown filmfor thermoplasticsfor PE
Add to favorites
Compare this product
Characteristics
- Other characteristics
- 11-layer
- Type
- blown film
- Treated material
- for thermoplastics, for PE
Description
Product overview
VAREX II — The customized high-output blown film extrusion line for demanding applications.
Your advantages
Typical film applications
Product information
Modular concept
The VAREX II is based on a modular concept that enables extensive configuration options. High-performance 8 µm PE-HD liner films and 11-layer barrier constructions with an EVOH layer down to 1 µm are within its application range. The line is suitable for PE applications, recycled materials and biopolymers.
Assistance and automations
Short start-up and changeover times reduce raw material consumption and waste while maintaining consistent film quality. The development focus is on productivity, flexibility, ergonomics and sustainability to achieve high output with material efficiency.
Technical data
Line widths [mm]: 1300 - 3600
Number of film layers [-]: 1, 3, 5, 7, 9, 11
Extruder screw diameters [mm]: 50, 60, 70, 90, 105, 120, 135
Die diameters [mm]: 160 - 900
Raw materials: PE, PP, PA, PLA, EVOH, ionomers, biopolymers, recycling materials
Winders: FILMATIC II V (surface / center / gap); FILMATIC II T (turret); FILMATIC II N (surface / center / gap)
Special equipment: side gusseting, water bath, annealing unit, MDO
Characteristics / technical specifications
VAREX II — The customized high-output blown film extrusion line for demanding applications.
Your advantages
- Produce a wide product portfolio with a single modular line
- Benefit from one of the largest process windows among comparable machines
- Process demanding applications such as barrier, adhesive and very wide films
Typical film applications
- Consumer packaging: food-contact
- Consumer packaging: non-food
- Industrial packaging
- Specialties: barrier films, machine-direction orientation (MDO), adhesive films, wide films
Product information
Modular concept
The VAREX II is based on a modular concept that enables extensive configuration options. High-performance 8 µm PE-HD liner films and 11-layer barrier constructions with an EVOH layer down to 1 µm are within its application range. The line is suitable for PE applications, recycled materials and biopolymers.
Assistance and automations
Short start-up and changeover times reduce raw material consumption and waste while maintaining consistent film quality. The development focus is on productivity, flexibility, ergonomics and sustainability to achieve high output with material efficiency.
Technical data
Line widths [mm]: 1300 - 3600
Number of film layers [-]: 1, 3, 5, 7, 9, 11
Extruder screw diameters [mm]: 50, 60, 70, 90, 105, 120, 135
Die diameters [mm]: 160 - 900
Raw materials: PE, PP, PA, PLA, EVOH, ionomers, biopolymers, recycling materials
Winders: FILMATIC II V (surface / center / gap); FILMATIC II T (turret); FILMATIC II N (surface / center / gap)
Special equipment: side gusseting, water bath, annealing unit, MDO
Characteristics / technical specifications
- Line widths: 1300 - 3600 mm
- Film layer options: 1, 3, 5, 7, 9, 11 layers
- Available extruder screw diameters: 50–135 mm
- Die diameter range: 160 - 900 mm
- Supported raw materials: PE, PP, PA, PLA, EVOH, ionomers, biopolymers, recycling materials
- Available winders: FILMATIC II V / T / N
- Optional equipment: side gusseting, water bath, annealing unit, MDO
