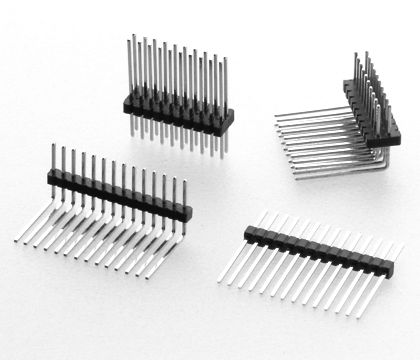

Male pin header 1 A, 1 mm | 721 series single-rowthrough-hole1.00 mm (0.039")
Add to favorites
Compare this product
Characteristics
- Type
- male
- Form
- single-row
- Other characteristics
- through-hole
- Pitch
- 1.00 mm (0.039")
Description
Pin Headers, 1.00mm Pitch, Straight/Right-Angled, Single/Double Row
Insulator Thermoplastic, rated UL94 V-0
Contact Material 0.30mm square pin, copper alloy
Contact Surface Acc. to options (see below), over Ni (1.3 ... 2.5µm)
Solderability IEC 60512-12A
Contact Resistance 500MΩ
Test Voltage 500VAC
Current Rating 1A
Temperature Range -40°C ... +105°C
Processing Wave or reflow soldering
