RF connector 141 series DINrectangularinsulation-displacement
Add to favorites
Compare this product
Characteristics
- Type
- RF
- Format
- DIN
- Shape
- rectangular
- Other characteristics
- insulation-displacement
- Primary current
1 A
- Pitch
2.54 mm
(0.1 in)
Description

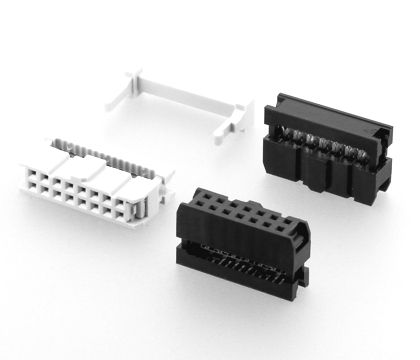

IDC Socket Connectors, 2.54mm Pitch - DIN 41651
Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Contact Surface Acc. to options (see below), over Ni (1.3 ... 2.5µm)
Applicable wire AWG28
Contact Resistance 1000MΩ
Test Voltage 500VAC
Current Rating 1A
Temperature Range -40°C ... +105°C
