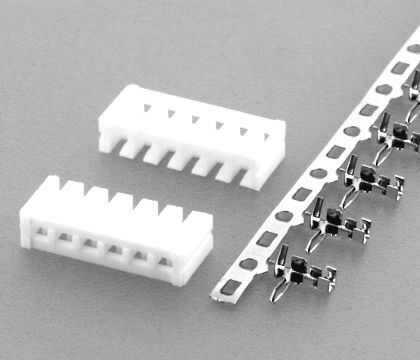

Data connector 572 series board-to-wirerectangularcrimp
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- board-to-wire
- Shape
- rectangular
- Connection type
- crimp
- Primary current
2.5 A
- Voltage
200 V
- Pitch
2.5 mm
(0.098 in)
Description
Crimp Connectors, 2.50mm Pitch, Right-Angled, Solder-In Terminals
Insulator Thermoplastic, rated UL94 V-0
Contact Material Copper alloy
Applicable wire AWG 22 ... 28
Solderability IEC 60512-12A
Contact Resistance 1000MΩ
Test Voltage 800VAC
Voltage Rating 200VAC
Current Rating 2.5A
Temperature Range -25°C ... +85°C
Processing Wave soldering
