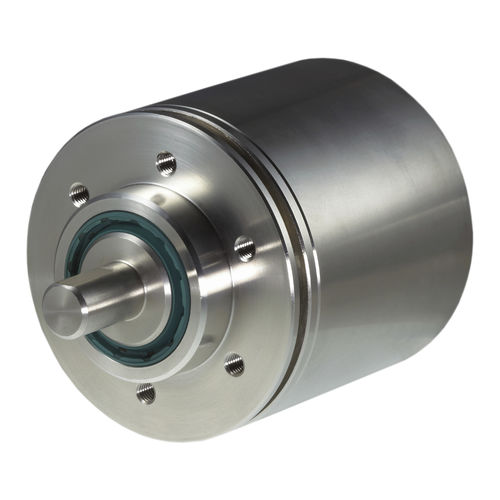

Incremental rotary encoder IX700
opticalblind-shaftsolid-shaft

Incremental rotary encoder - IX700 - W+S Meßsysteme GmbH - optical / blind-shaft / solid-shaft
Incremental rotary encoder - IX700 - W+S Meßsysteme GmbH - optical / blind-shaft / solid-shaft
Add to favorites
Compare this product
Go to the W+S Meßsysteme GmbH website for more information

Characteristics

Type
incremental
Technology
optical
Construction
solid-shaft, blind-shaft
Output signal
RS-422, digital output
Supply voltage
4.75-30 V DC
Material
stainless steel
Protection level
explosion-proof, for hazardous areas, IP67, IP66, flameproof
Applications
marine, gas and oilfield, for mining
Other characteristics
high-resolution, high-accuracy, heavy-duty, rugged
Incremental encoder résolution (pulses per revolution

Max.: 50,000 unit

Min.: 1 unit

Housing diameter

70 mm
(2.76 in)

Shaft diameter

Max.: 20 mm
(0.79 in)

Min.: 6 mm
(0.24 in)

Rotational speed

3,000 rpm
(18,850 rad.min-1)

Output frequency

300 kHz

Process temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Description

We manufacture encoders with the following types of protection for use in potentially explosive environments: Ignition protection type EX “d” for use in gas environments Parts that can ignite an explosive atmosphere are enclosed in a housing (flameproof enclosure) which can withstand the pressure of an explosive mixture inside it if it explodes. This prevents the explosion from being transmitted to the flammable atmosphere surrounding the enclosure. Ignition protection type EX “d” for use in mines at risk of firedamp: As soon as an explosive atmosphere is created, the device must be switched off. Ignition protection type EX “t” for use in dust environments: This protection is based on limiting the maximum surface temperature of the housing and on restricting dust ingress by using dust-tight (IP 67) housing parts according to EN IEC 60529.
