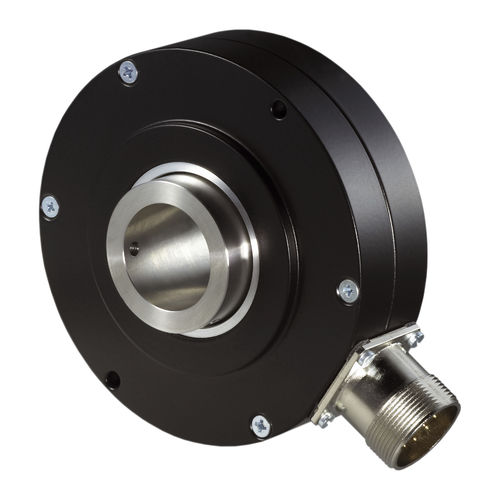

Incremental rotary encoder RH951opticalhollow-shaftdigital output
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- optical
- Construction
- hollow-shaft
- Output signal
- RS-422, digital output
- Supply voltage
- 4.75-30 V DC
- Material
- aluminum, stainless steel
- Protection level
- vibration-resistant, shock resistant, rugged, IP65
- Applications
- industrial, for OEM, for elevators, for handling systems
- Other characteristics
- compact, redundant, flat, large-diameter, galvanically-isolated
- Incremental encoder résolution (pulses per revolution
Max.: 5,000 unit
Min.: 1 unit
- Housing diameter
95 mm
(3.74 in)- Shaft diameter
Max.: 30 mm
(1.18 in)Min.: 15 mm
(0.59 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Output frequency
300 kHz
- Process temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Our service portfolio also includes special encoders that we have developed for specific customer requirements.
These include special encoders with specific static output signals or, for example, encoders tailored exactly to customer requirements that have a special mechanism or flange variant.
Simply tell us your requirements. We would be happy to develop a custom rotary encoder for you.
Catalogs
Datasheet RH951 (EN)
2 Pages
Encoders Product Overview (EN)
22 Pages
