Drying oven FA Seriessterilizationcabinetelectric
Add to favorites
Compare this product
Characteristics
- Function
- drying, sterilization
- Configuration
- cabinet
- Heat source
- electric
- Atmosphere
- forced convection
- Other characteristics
- stainless steel, vertical, laboratory
- Maximum temperature
Max.: 250 °C
(482 °F)Min.: 5 °C
(41 °F)- Capacity
Max.: 1,000 l
(264.17 gal)Min.: 30 l
(7.93 gal)- Width
Max.: 1,250 mm
(49.21 in)Min.: 500 mm
(19.69 in)- Height
Max.: 1,750 mm
(68.9 in)Min.: 570 mm
(22.44 in)- Depth
500 mm, 600 mm, 810 mm, 1,040 mm
(19.69 in, 23.62 in, 31.89 in, 40.94 in)
Description

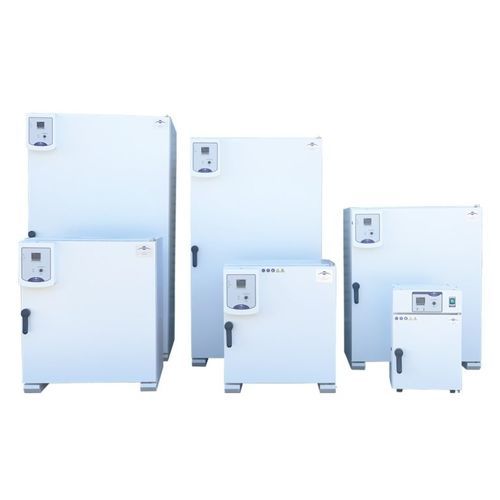

FA Series Fan Forced Drying Ovens
• Ideal for drying and sterilization with reduced processing time.
• Steel outer body coated in corrosive resistant epoxy paint.
• Stainless steel AISI 304 Internal chamber with rounded corners.
• Electronic temperature controlled by PID microprocessor and PT 100 probe.
• One ramp function.
• Visual alarm “over-temp” thermostat and manual reset.
• Adjustable ventilation by means of rear exhaust duct diam 0.50 mm with front ventilation slide.
• Fibreglass thermal insulation.
• Two stainless steel wire shelves included.
• Three stainless steel wire shelves included for 430L, 720L and 1000L cabinets
