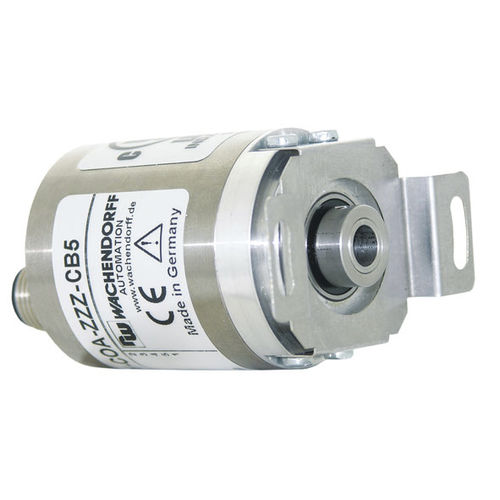

Absolute rotary encoder WDGA 36Emagnetic16-bit32-bit
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- magnetic
- Absolute encoder resolution
- 16-bit, 32-bit
- Absolute encoder revolution number
- 16-bit, 32-bit
- Construction
- solid-shaft, single-turn, multi-turn, sealed
- Output signal
- RS-485
- Supply voltage
- 32VDC, 4.5VDC
- Material
- steel
- Protection level
- maintenance-free, IP67, IP65, IP40, EMC
- Applications
- industrial
- Other characteristics
- compact
- Housing diameter
36 mm
(1.42 in)- Shaft diameter
6 mm
(0.24 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description
Absolute hollow bore (blind) encoder, magnetic,
CRC checksum
Highlights
• EnDra® multiturn technology:
• maintenance-free and environmentally friendly
• Compact industrial model
• Interface: RS485
• Preset input
• Direction of counting changeable
• Status indicator LED
• EMC: EN 61000-6-2, EN 61000-6-3
Product details
Flange
hollow shaft (blind-bored)
steel case chrome-plated, magnetic shielding
Insertion depth min.: 8 mm
Insertion depth max.: 17 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Insertion depth min.: 8 mm
Insertion depth max.: 17 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Max. operating speed
Current consumption: typ. 50 mA
Power consumption: max. 0.5 W
Current consumption: typ. 80 mA
Power consumption: max. 0.44 W
Catalogs
Other Wachendorff Automation GmbH & Co. KG products
Encoders absolute, RS485
