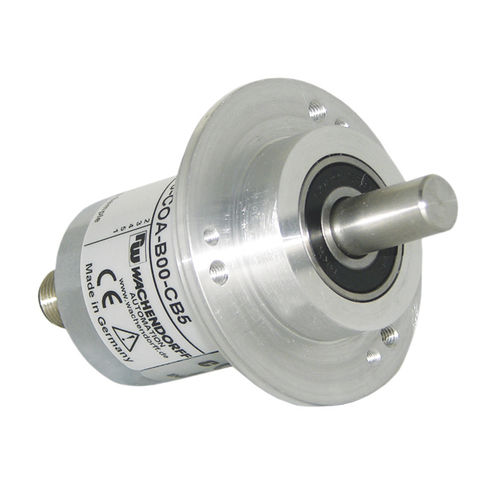

Absolute rotary encoder WDGA 58Bmagnetic16-bit32-bit
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- magnetic
- Absolute encoder resolution
- 16-bit, 32-bit
- Absolute encoder revolution number
- 16-bit, 32-bit
- Construction
- solid-shaft, single-turn, multi-turn, flange
- Output signal
- CANopen LIFT
- Supply voltage
- 32VDC, 4.5VDC
- Material
- stainless steel
- Protection level
- maintenance-free, IP67, IP65
- Other characteristics
- high-resolution
- Housing diameter
58 mm
(2.28 in)- Shaft diameter
Min.: 6 mm
(0.24 in)Max.: 10 mm
(0.39 in)- Length
Min.: 12 mm
(0.472 in)Max.: 20 mm
(0.787 in)- Rotational speed
8,000 rpm
(50,265 rad.min-1)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description
Absolute shaft encoder, magnetic,
CANopen LIFT WDGA 58B
Clamping flange;
Communication Profile according to CiA 301
Application Profile CANopen Lift CiA 417;
binary code
Highlights
• EnDra® maintenance-free and environmentally friendly
• CANopen LIFT, Single-turn/Multi-turn
• Communication Profile according to CiA 301
• Application Profile CANopen Lift CiA 417
• Future-oriented technology with 32 Bit processor
• 2-colour-LED as indicator for operating condition and error message appropriate CiA 303-3
• High shaft load up to 220 N radial, 120 N axial
Product details
Flange
clamping flange
steel case chrome-plated, magnetic shielding
Resolution
Single-turn Resolution
Multi-turn Resolution
Advice: Attention: No option AAS = full IP67 version
Max. Permissible shaft loading radial: 125 N
Max. Permissible shaft loading axial: 120 N
Max. Permissible shaft loading radial: 220 N
Max. Permissible shaft loading axial: 120 N
Max. operating speed
Current consumption: typ. 50 mA
Power consumption: max. 0.5 W
Protection class
Housing: IP65, IP67; shaft sealed: IP65
Other Wachendorff Automation GmbH & Co. KG products
Encoders absolute, CANopen Lift
