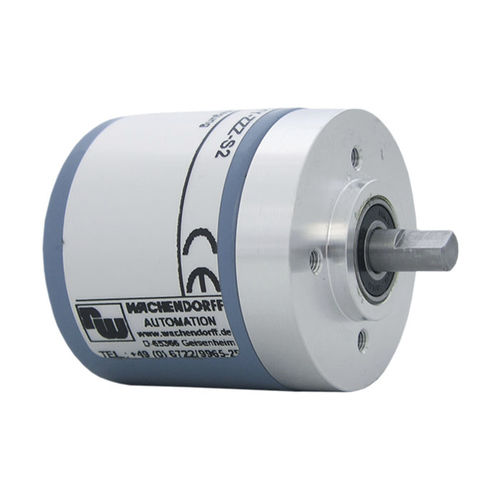

Incremental rotary encoder WDG 40Kopticalmagneticsolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- optical, magnetic
- Construction
- solid-shaft, flange
- Protection level
- robust, IP65, IP67, IP40
- Housing diameter
40 mm
(1.57 in)
Description
Shaft Encoder incremental quadrature, optical,
Protection to IP67, shaft sealed to IP65
Signal shape: square-wave.
Highlights
• Robust and economical encoder with small dimensions
• Protection to IP67, shaft sealed to IP65
Product details
Flange
Pilot flange
aluminum, powder coated
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Output circuit
TTL
TTL, RS422 compatible, inv.
HTL
HTL, inv.
Power supply
4,75 VDC up to 5,5 VDC
Current consumption: typ. 70 mA
10 VDC up to 30 VDC
Current consumption: typ. 70 mA
Protection class
Housing: IP65, IP67; shaft sealed: IP65; (IP40 for K1)
